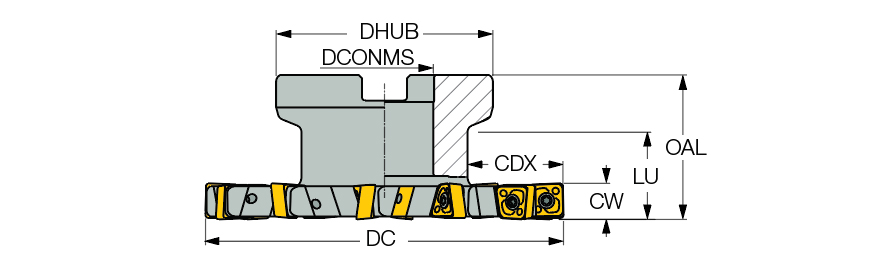

FDN D080-12-22-XN09
| Cutting Diameter (DC) | 80 mm | Flute Count (NOF) | 12 |
| Cutting Item Count (CICT) | 10 | Overall Length (OAL) | 40 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Master Insert Identification (MIID) | XNMU 0904... |
| Depth of Cut Maximum (APMX) | 12 mm | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |

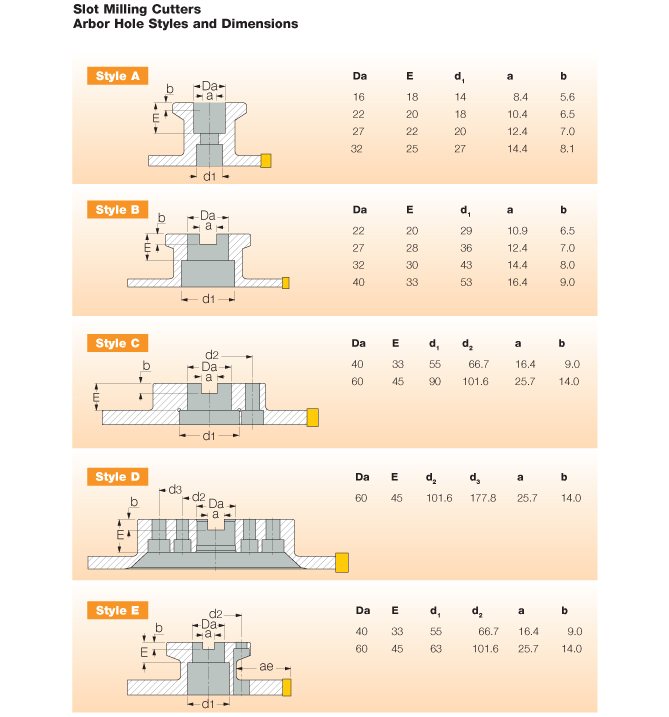

| Cutting Depth Maximum (CDX) | 22.5 mm | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 48 mm | Measurement Type | Metric |
| Cutting Width (CW) | 12 mm | Body Material | Steel |
| Usable Length (LU) | 27 mm |
Product Features

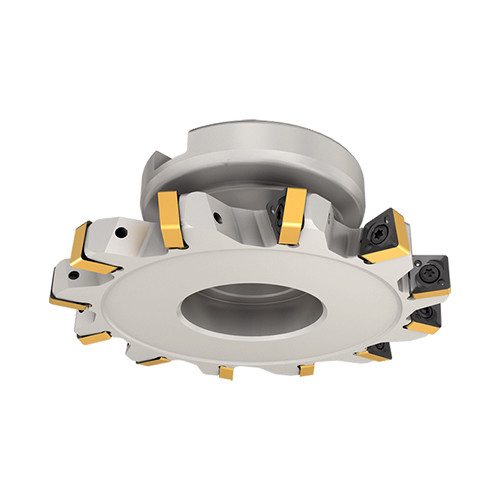

| Family Description | Full slot flange type, slotting cutters carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.482
