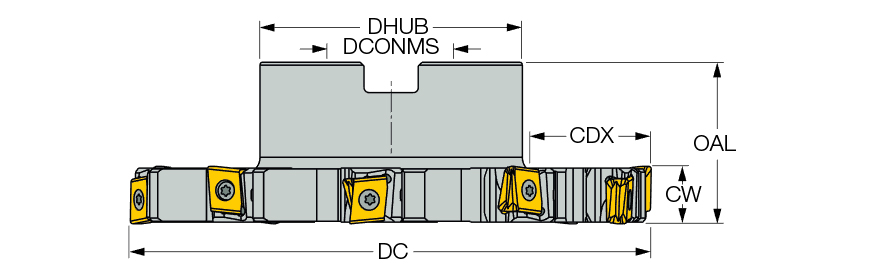

FDN D125-1723-32R-CALN13
| Cutting Diameter (DC) | 126 mm | Flute Count (NOF) | 8 |
| Cutting Item Count (CICT) | 8 | Overall Length (OAL) | 39.25 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Master Insert Identification (MIID) | T490 LNHT 1306PNTR |
| Cutting Depth Maximum (CDX) | 30 mm | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Arbor Style | B |
| Hub Diameter (DHUB) | 65 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 23 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 17.5 mm | Body Material | Steel |
Product Features

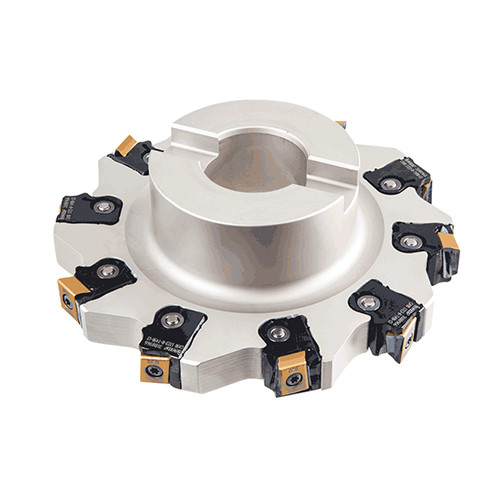

| Family Description | Full slot adjustable slotting cutters with cartridges using T490 LNHT 1306PNTR/L inserts, 17.5-23.0 mm width range. Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly. | Country of Origin | Israel |

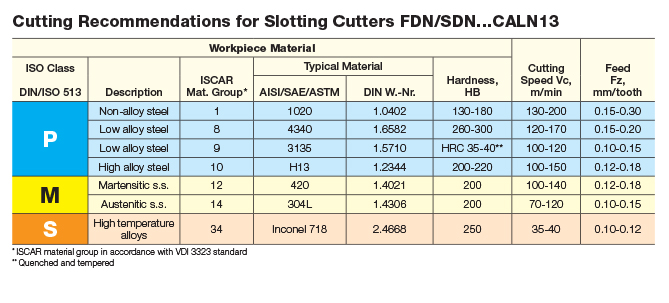

| Remarks | Half of the inserts are used on right-hand cartridges and half on left-hand cartridges The cutter will be set to the minimum width range, unless a specific width is requested by the user. For cutting recommendations, click on More Info |
Shipping Info
Package Weight
3.896
