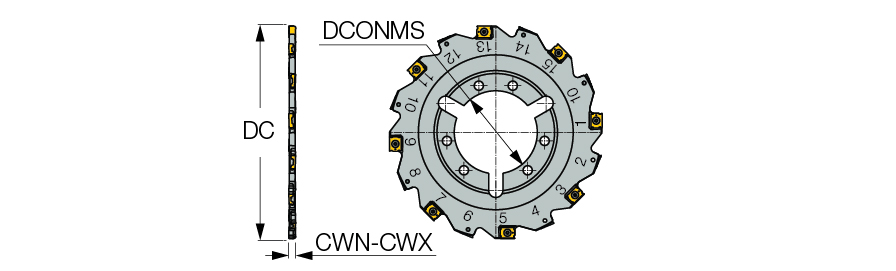

| Cutting Diameter (DC) | 100 mm | Flute Count (NOF) | 12 |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | LNET 083504-TN-N |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Application | | Side Slotting | Slitting | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Arbor Style | Arbor Hole |
| Hub Diameter (DHUB) | 57.15 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 6.5 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 6 mm | Body Material | Steel |
| Usable Length (LU) | 35 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Disk type Grooving and slitting cutters. | Country of Origin | Israel |
Shipping Info
Package Weight
0.996
