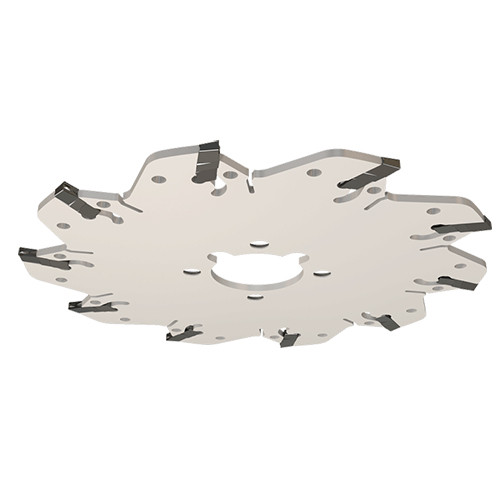

GM D200-4DG-40K
| Cutting Diameter (DC) | 200 mm | Cutting Width Minimum (CWN) | 3.36 mm |
| Cutting Item Count (CICT) | 14 | Master Insert Identification (MIID) | GIP 4.00 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 14 | Application | | Side Slotting | Slitting | |
| Cutting Depth Maximum (CDX) | 59 mm | Rotational Speed Maximum (RPMX) | 400 Rev/min |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | Slitting cutters |
| Hub Thickness (THUB) | 3.2 mm | Measurement Type | Metric |
| Cutting Width (CW) | 4 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 4.35 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Slitting cutters carrying self-clamped inserts. When used with GIM or GIMY single ended inserts, cutting depth is not limited. GIP and GIF double-ended inserts can be used for DOC less than 12mm, GIPA inserts for aluminum. | Country of Origin | Israel |

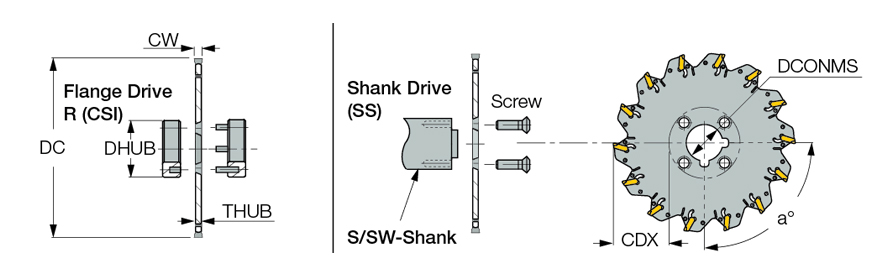

| Remarks | DHUB refers to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded. |
Shipping Info
Package Weight
2.101
