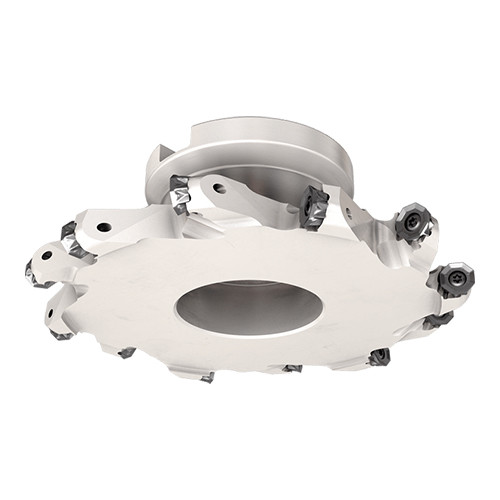

FDN CM-D125-12-32-FE

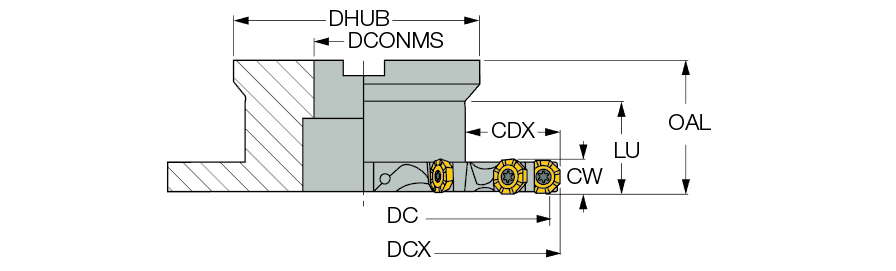

| Cutting Diameter (DC) | 113.6 mm | Flute Count (NOF) | 10 |
| Cutting Item Count (CICT) | 10 | Overall Length (OAL) | 45 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Master Insert Identification (MIID) | R90MT 1205 |
| Depth of Cut Maximum (APMX) | 12.2 mm | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | |
| Cutting Depth Maximum (CDX) | 35.3 mm | Arbor Style | B |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 65 mm | Measurement Type | Metric |
| Cutting Width (CW) | 12.2 mm | Body Material | Steel |
| Usable Length (LU) | 32 mm |
Product Features
| Family Description | Flange type full width slotting cutters carrying round and octagonal inserts. | Country of Origin | Israel |
| Remarks | For various insert options, see More info. |
Shipping Info
Package Weight
2.670
