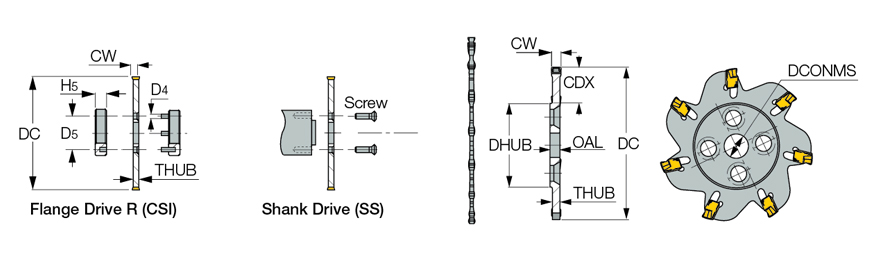

SGSA 125-3-32K-16Z-FP
| Cutting Diameter (DC) | 125 mm | Overall Length (OAL) | 2.4 mm |
| Cutting Item Count (CICT) | 16 | Master Insert Identification (MIID) | GSAN 3 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 16 | Application | | Side Slotting | Slitting | T Slotting | |
| Cutting Depth Maximum (CDX) | 25 mm | Rotational Speed Maximum (RPMX) | 635 rpm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Tool Type | Slitting cutters |
| Hub Thickness (THUB) | 2.4 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 3.53 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 2.7 mm |
Product Features
| Family Description | Slitting cutters Carrying GSAN self-clamped inserts. | Country of Origin | Israel |
| Remarks | For LB,DBS,D4 refer to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded |
Shipping Info
Package Weight
0.728
