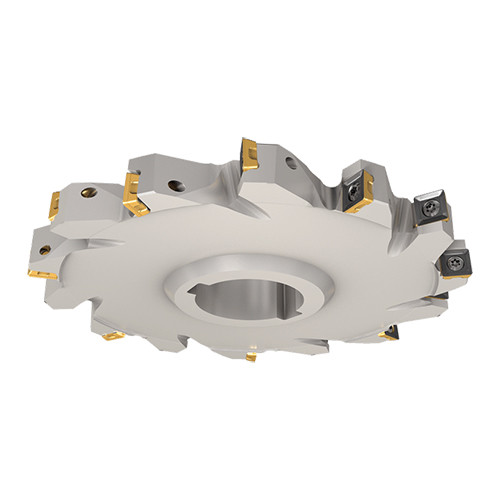

SDN D080-08-27-06

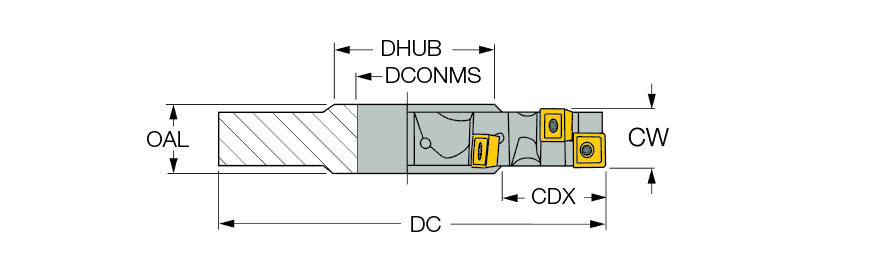

| Cutting Diameter (DC) | 80 mm | Flute Count (NOF) | 12 |
| Cutting Item Count (CICT) | 12 | Overall Length (OAL) | 12 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Master Insert Identification (MIID) | XOMT 060204-HQ |
| Depth of Cut Maximum (APMX) | 8 mm | Application | | Bottom Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 17 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 41 mm | Body Material | Steel |
| Cutting Width (CW) | 8 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Full slot disk type slotting cutters carrying square inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.922
