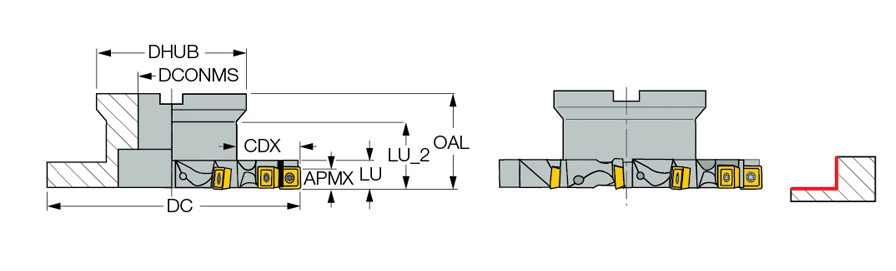

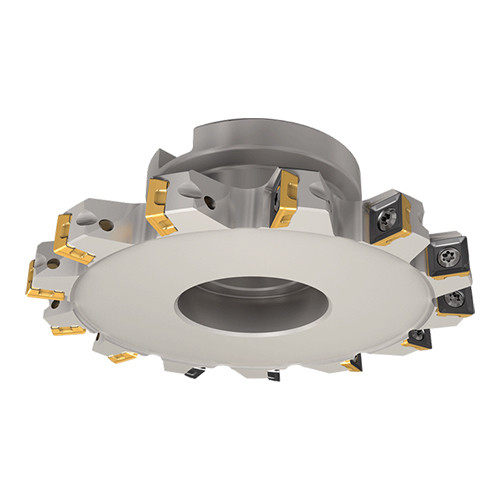

FSB D125-12-32-R10
| Cutting Diameter (DC) | 125 mm | Overall Length (OAL) | 45 mm |
| Cutting Item Count (CICT) | 13 | Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
| Peripheral Effective Cutting Edge Count (ZEFP) | 13 | Application | | Facing | Shouldering | |
| Depth of Cut Maximum (APMX) | 9 mm | Arbor Style | B |
| Cutting Depth Maximum (CDX) | 34 mm | Tool Type | Half-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 65 mm | Body Material | Steel |
| Usable Length (LU) | 12 mm |
Product Features
| Family Description | Bottom-side cutting, flanged type slotting cutters. | Country of Origin | Turkey |
Shipping Info
Package Weight
3.563
