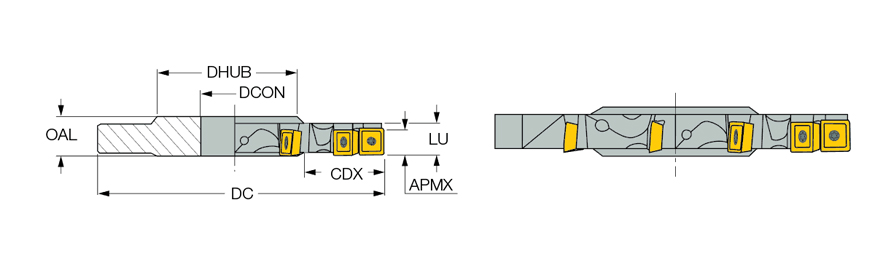

SSB D100-12-32-L10
| Cutting Diameter (DC) | 100 mm | Overall Length (OAL) | 16 mm |
| Cutting Item Count (CICT) | 9 | Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
| Peripheral Effective Cutting Edge Count (ZEFP) | 9 | Application | | Bottom Shouldering | Facing | Shouldering | |
| Depth of Cut Maximum (APMX) | 9 mm | Tool Type | Half-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 26 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Hub Diameter (DHUB) | 47 mm | Connection Code Machine Side (CCMS) | Disk type |
| Usable Length (LU) | 12 mm |
Product Features

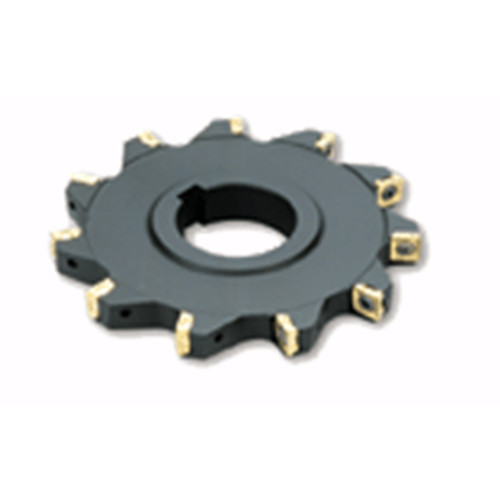

| Family Description | Single-side cutting, disk type slotting cutters carrying square inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.537
