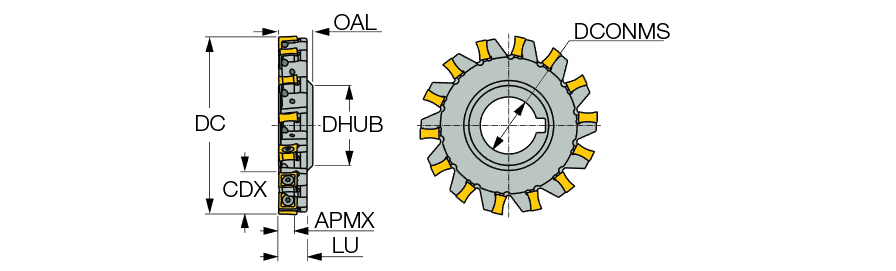

| Cutting Diameter (DC) | 125 mm | Flute Count (NOF) | 14 |
| Cutting Item Count (CICT) | 14 | Overall Length (OAL) | 24 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 14 | Master Insert Identification (MIID) | S890 SNMU 1305PNR |
| Depth of Cut Maximum (APMX) | 9 mm | Application | | Bottom Shouldering | Facing | Shouldering | |
| Cutting Depth Maximum (CDX) | 33 mm | Tool Type | Half-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 56 mm | Body Material | Steel |
| Usable Length (LU) | 20 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features

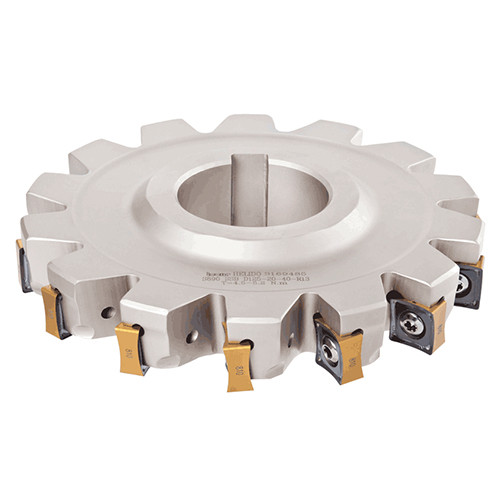

| Family Description | Half-side / face disk milling cutters, carrying HELIDO S890 SNMU 1305 eight-edged inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
3.203
