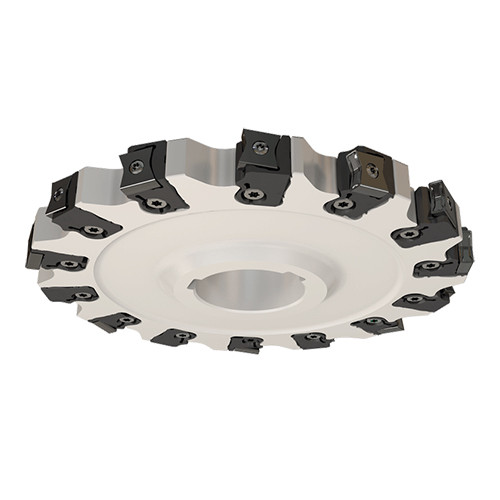

SDN D200-1925-50-CALN15

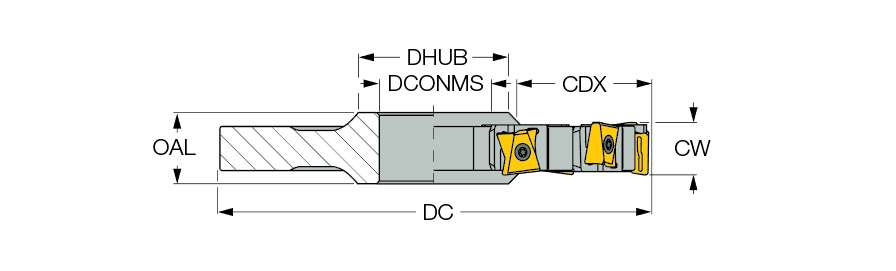

| Cutting Diameter (DC) | 200 mm | Flute Count (NOF) | 14 |
| Cutting Item Count (CICT) | 14 | Overall Length (OAL) | 26 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Master Insert Identification (MIID) | LNKX 1506PN-N PL |
| Cutting Depth Maximum (CDX) | 61.5 mm | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 70 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 25.6 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 18.9 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Full slot adjustable slotting cutters with cartridges carrying tangentially mounted LN.. 1506.. inserts. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. | Country of Origin | Israel |
| Remarks | Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly Half of the inserts are used on right-hand cartridges and half on left-hand cartridges Gang-mill assembly SDN and left-hand SSB cutters feature two keyways. To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. |
Shipping Info
Package Weight
7.494
