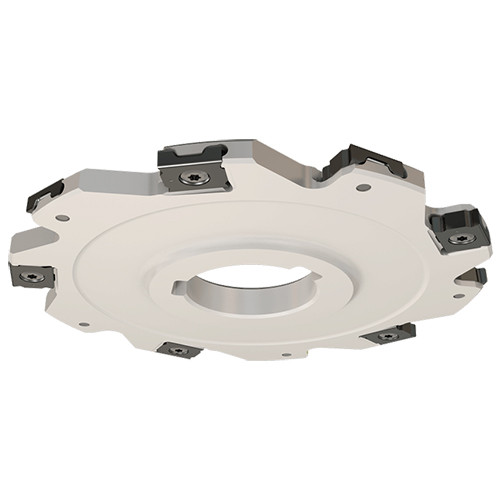

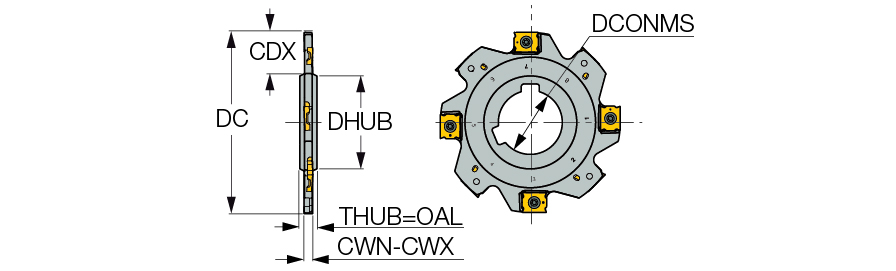

SDN D080-05-22-LN08
| Cutting Diameter (DC) | 80 mm | Cutting Width Minimum (CWN) | 5 mm |
| Cutting Item Count (CICT) | 10 | Flute Count (NOF) | 10 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Master Insert Identification (MIID) | LNET 083004-TN-N |
| Cutting Depth Maximum (CDX) | 22 mm | Application | | Side Slotting | Slitting | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 34 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 7 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 5.5 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.580
