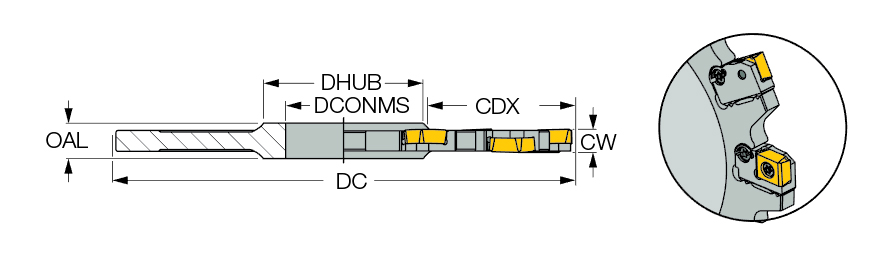

SDN D250-1014-50-CALN12
| Cutting Diameter (DC) | 250 mm | Cutting Width Minimum (CWN) | 10.5 mm |
| Cutting Item Count (CICT) | 20 | Usable Length (LU) | 35 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Flute Count (NOF) | 20 |
| Cutting Depth Maximum (CDX) | 87 mm | Arbor Style | Arbor Hole |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 57.15 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 14.6 mm |
Product Features
| Family Description | Full slot adjustable slotting cutters with cartridges carrying tangentially mounted LNET 12... inserts. Narrow slitting, saves workpiece material and provides excellent surface quality, (e.g. for bearing caps). | Country of Origin | Israel |
| Remarks | For width assembly options, click on More Info. |
Shipping Info
Package Weight
8.302
