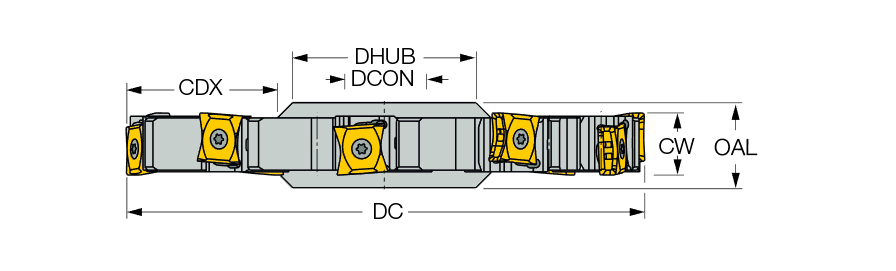

SDN D250-1925-60-CAPM15
| Cutting Diameter (DC) | 250 mm | Overall Length (OAL) | 26 mm |
| Cutting Item Count (CICT) | 16 | Master Insert Identification (MIID) | LNAT 150640-TN-PM |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 79 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 85 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 25.6 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 18.9 mm | Connection Code Machine Side (CCMS) | Disk type |
| Flute Count (NOF) | 16 |
Product Features

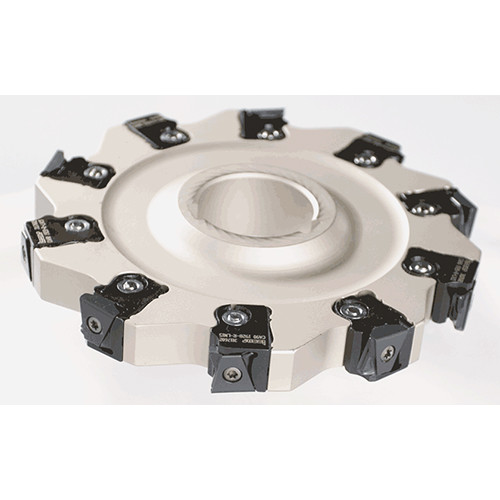

| Family Description | Full slot adjustable slotting cutters with cartridges carrying tangentially mounted LNAT 1506...-PM inserts. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. | Country of Origin | Israel |
| Remarks | Each cutter can be changed into full slot, bottom or top milling configuration Use A type cartridges for inserts with 0.8-1.6 mm radii, B type cartridges for inserts with 2.5-3.2 mm radii and C type cartridges for insertswith 4.0 mm radius Each cutter features two keyways. To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For cartridge details, click on More Info |
Shipping Info
Package Weight
12.461
