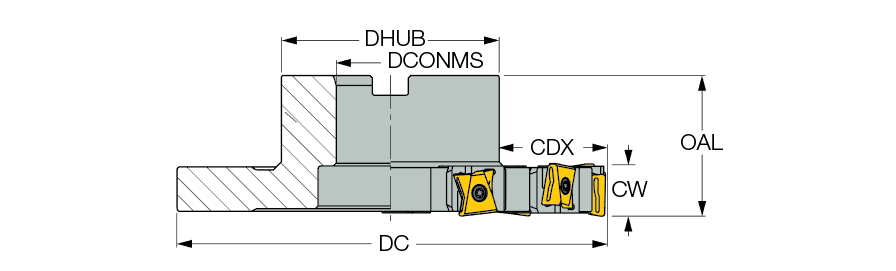

FDN D125-1925-32R-CALN15
| Cutting Diameter (DC) | 125 mm | Flute Count (NOF) | 8 |
| Cutting Item Count (CICT) | 8 | Overall Length (OAL) | 40 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Master Insert Identification (MIID) | LNKX 1506PN-N PL |
| Cutting Depth Maximum (CDX) | 30 mm | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Arbor Style | B |
| Hub Diameter (DHUB) | 65 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 25.6 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 18.9 mm | Body Material | Steel |
Product Features
| Family Description | Full slot, adjustable slotting cutters with cartridges using LNMT 1506PNTN-HT inserts, 18.9-25.6 mm width range. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. | Country of Origin | Israel |
| Remarks | Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. For adaptation click on More Info |
Shipping Info
Package Weight
4.012
Related Documentation

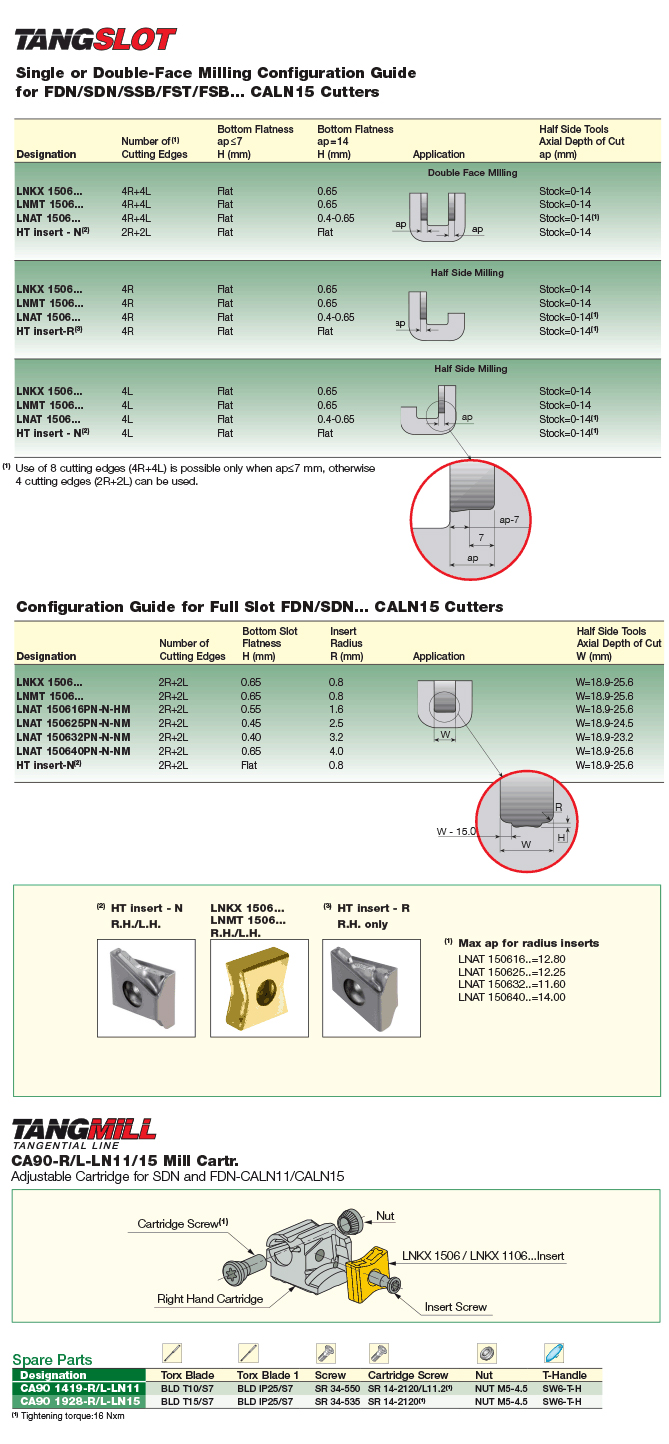

Half of the inserts are used on right-hand cartirdges and half on left-hand cartirdges.
