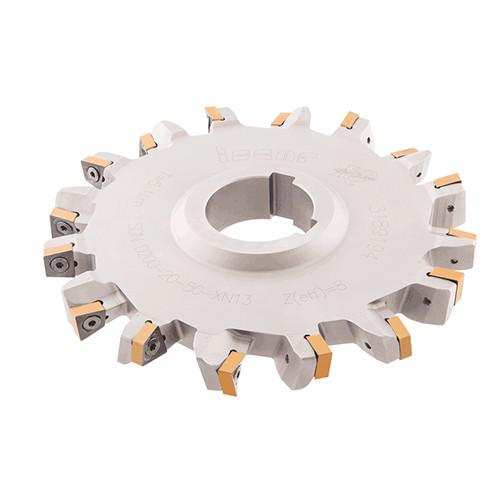

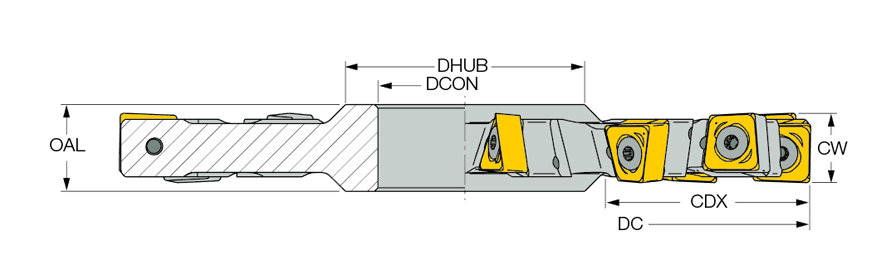

SDN D125-16-40-XN13
| Cutting Diameter (DC) | 125 mm | Flute Count (NOF) | 12 |
| Cutting Item Count (CICT) | 12 | Overall Length (OAL) | 20 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Master Insert Identification (MIID) | XNMU 130608PNTN |
| Depth of Cut Maximum (APMX) | 16 mm | Application | | Bottom Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 33 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 55 mm | Body Material | Steel |
| Cutting Width (CW) | 16 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Full slot disk type slotting cutters carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
2.273
