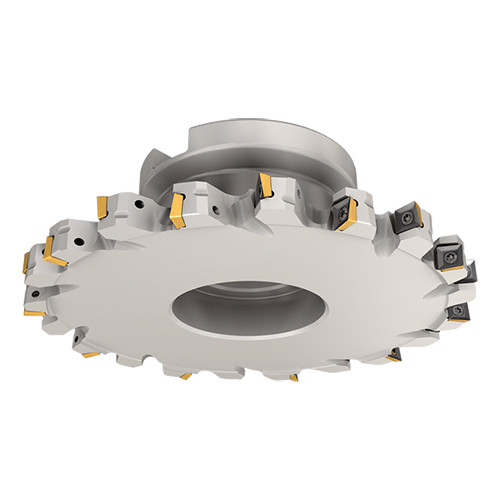

FDN D125-10-32-R06

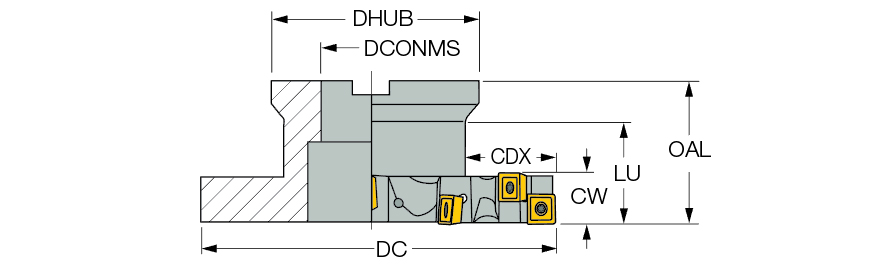

| Cutting Diameter (DC) | 125 mm | Flute Count (NOF) | 20 |
| Cutting Item Count (CICT) | 20 | Overall Length (OAL) | 45 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Master Insert Identification (MIID) | XOMT 060204-HQ |
| Depth of Cut Maximum (APMX) | 10 mm | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 35.5 mm | Arbor Style | B |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 65 mm | Measurement Type | Metric |
| Cutting Width (CW) | 10 mm | Body Material | Steel |
| Usable Length (LU) | 32 mm |
Product Features
| Family Description | HELIQUAD, Full slot, flange-type slotting cutters. | Country of Origin | Israel |
| Remarks | For fully effective conditions, click on More Info. |
Shipping Info
Package Weight
2.586
