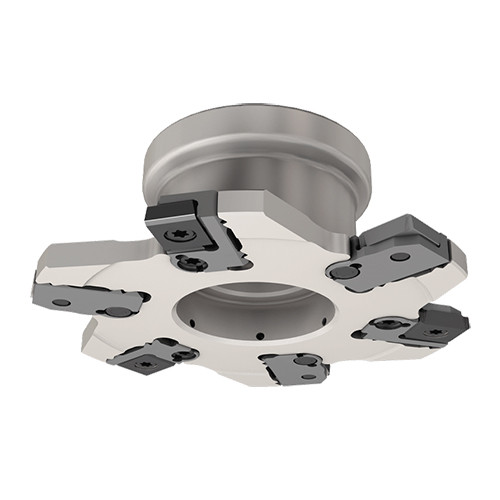

FDN D160-1014-40R-CALN12

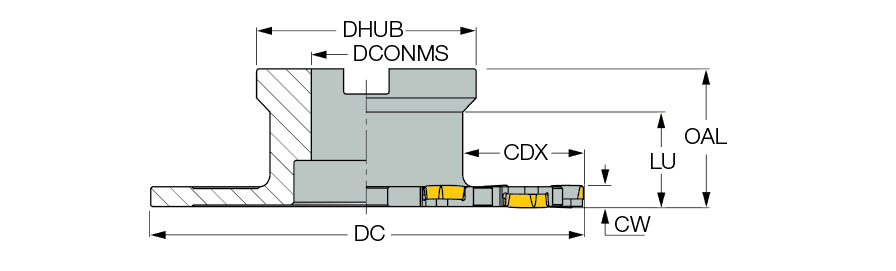

| Cutting Diameter (DC) | 160 mm | Usable Length (LU) | 31.2 mm |
| Cutting Item Count (CICT) | 12 | Flute Count (NOF) | 12 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Overall Length (OAL) | 47.5 mm |
| Cutting Depth Maximum (CDX) | 44 mm | Master Insert Identification (MIID) | LNET 126504-TN |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Hub Diameter (DHUB) | 80 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 14.6 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 10.5 mm | Body Material | Steel |
Product Features
| Family Description | Full slot, adjustable slotting cutters with cartridges using tangentially clamped LNET 12 inserts, 6.0-10.5 mm width range. The narrow and accurate slitting capability is used for applications like slitting bearing caps. | Country of Origin | Israel |

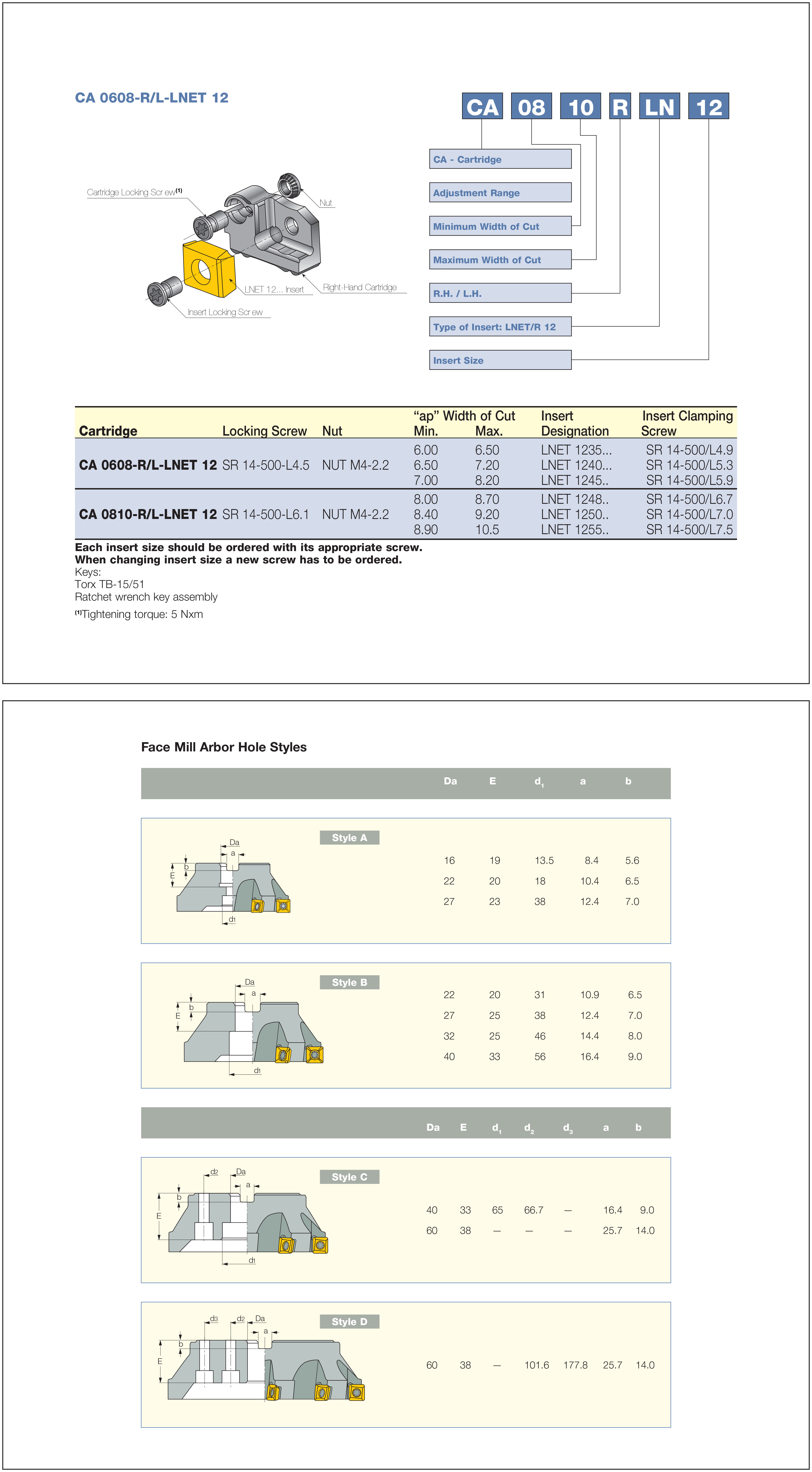

| Remarks | For adaptation, click on More Info. For cartridges, click on More Info. |
Shipping Info
Package Weight
4.833
