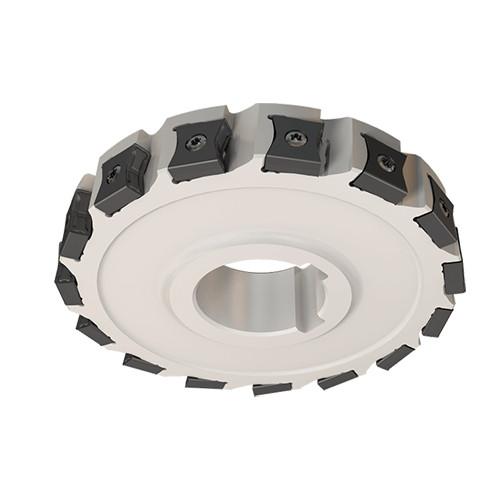

SSB D100-22-32-LN15-R

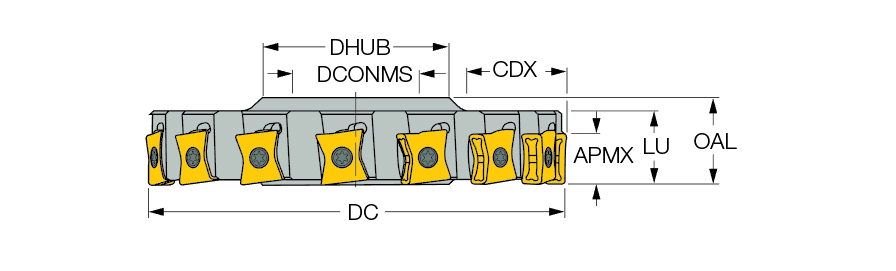

| Cutting Diameter (DC) | 100 mm | Overall Length (OAL) | 26 mm |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | LNHT 1506PN-R HT |
| Peripheral Effective Cutting Edge Count (ZEFP) | 12 | Application | | Bottom Shouldering | Shouldering | |
| Depth of Cut Maximum (APMX) | 14 mm | Tool Type | Half-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 26 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Hub Diameter (DHUB) | 48 mm | Connection Code Machine Side (CCMS) | Disk type |
| Usable Length (LU) | 22 mm |
Product Features
| Family Description | Single-side cutting, disk type slotting cutters carrying tangentially clamped LNKX 1506... inserts. | Country of Origin | Israel |
| Remarks | Note: Left-hand cutters are designated by a yellow groove. |
Shipping Info
Package Weight
2.696
