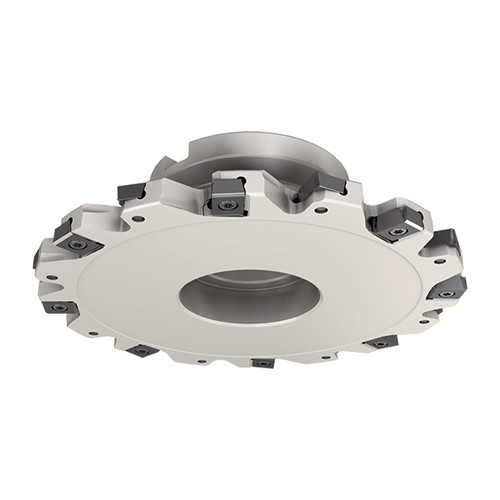

FDN D200-10-40-LN12

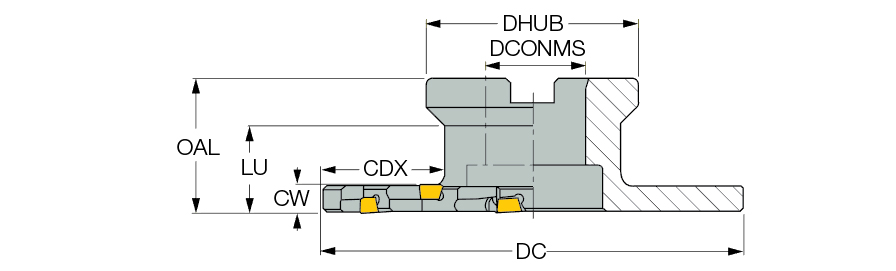

| Cutting Diameter (DC) | 200 mm | Flute Count (NOF) | 20 |
| Cutting Item Count (CICT) | 20 | Overall Length (OAL) | 50 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Master Insert Identification (MIID) | LNET 126508-TN |
| Cutting Depth Maximum (CDX) | 51.5 mm | Application | | Bottom Shouldering | Side Slotting | Slotting | T Slotting | |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Arbor Style | C |
| Hub Diameter (DHUB) | 92 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 12 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 10 mm | Body Material | Steel |
| Usable Length (LU) | 49.5 mm |
Product Features
| Family Description | Full slot cutters carrying LNET 12 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT). | Country of Origin | Israel |

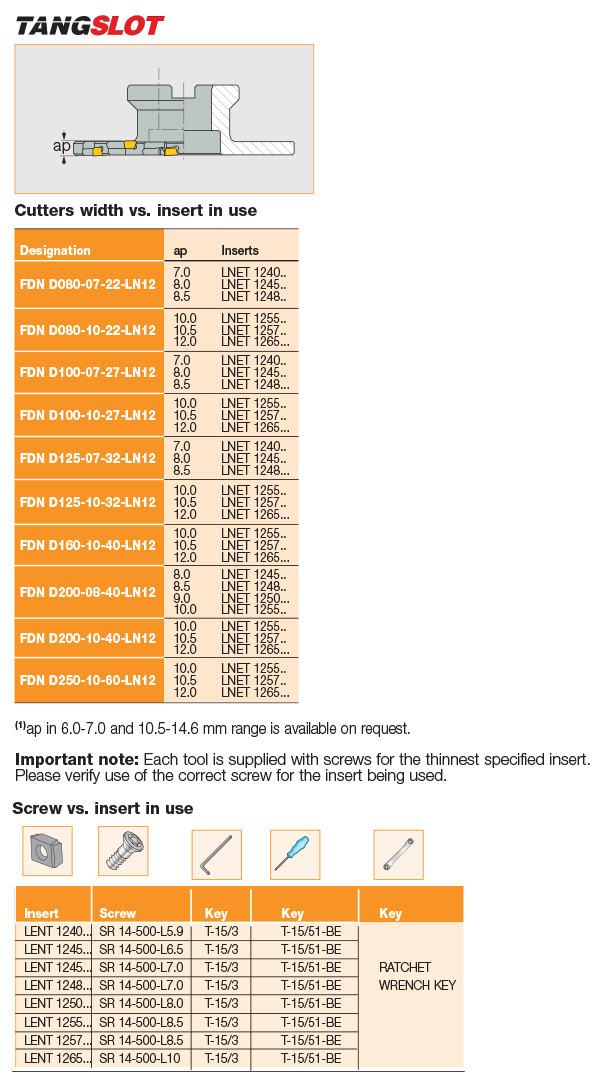

| Remarks | Slot width depends on the selected insert width. Each tool is supplied with screws for the thinnest specified insert. Verify use of correct screw for the insert being used. |
Shipping Info
Package Weight
7.348
