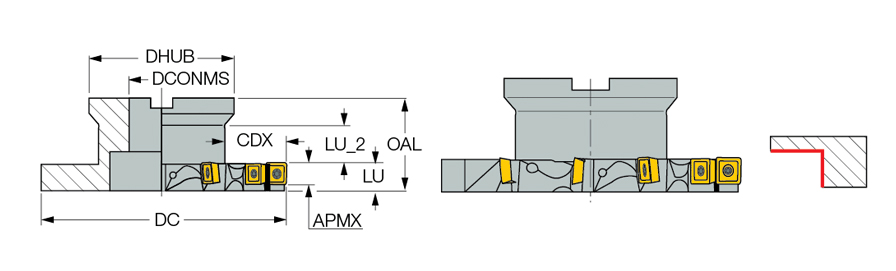

FST D100-12-27-R10
| Cutting Diameter (DC) | 100 mm | Overall Length (OAL) | 40 mm |
| Cutting Item Count (CICT) | 11 | Master Insert Identification (MIID) | XPMT 100408-HQ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 11 | Application | | Bottom Shouldering | |
| Depth of Cut Maximum (APMX) | 9 mm | Arbor Style | B |
| Cutting Depth Maximum (CDX) | 25 mm | Tool Type | Half-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 55 mm | Body Material | Steel |
| Usable Length (LU) | 12 mm |
Product Features
| Family Description | Top-side cutting, flanged type slotting cutters. | Country of Origin | Israel |
Shipping Info
Package Weight
2.101
