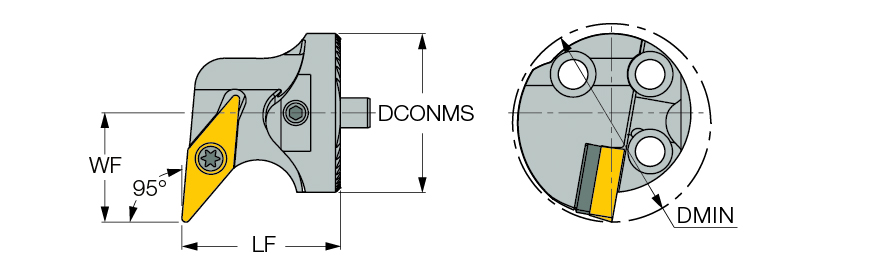

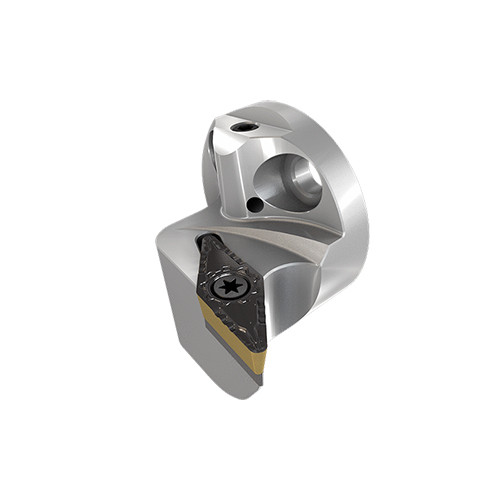

AVC-D40-SVLCL-16T
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 1.26″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Width (WF) | 1.063″ | Application | | Int. 35° Diamond 95° Approach | |
| Master Insert Identification (MIID) | VCMT 332-F3M | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.968″ | Measurement Type | Inch |
Product Features
| Family Description | Interchangeable boring heads carrying 35° rhombic inserts with 7° clearance. | Country of Origin | China |
| Remarks | For positive V insert geometry with radius .0472 please use set: TVC 3-04675 *5592726 |
Shipping Info
Package Weight
0.335
