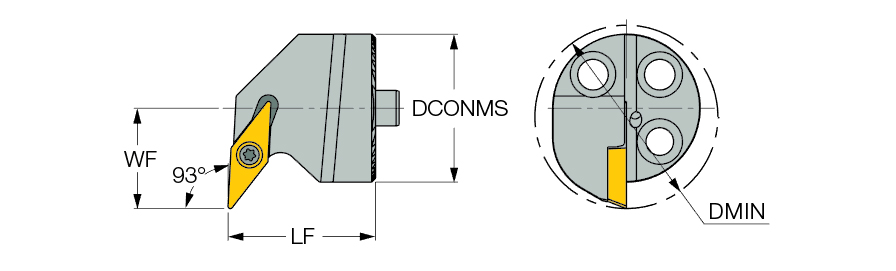

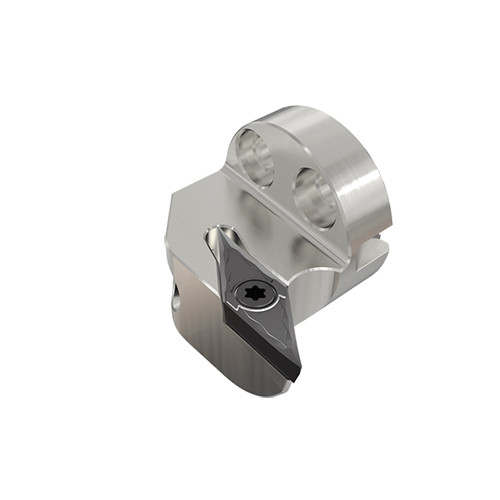

AVC-D20-SVUCR-11
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 0.787″ | Application | | Int. 35° Diamond 93° Approach | |
| Functional Width (WF) | 0.63″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Master Insert Identification (MIID) | VCMT 221-F3P | Rake Angle Radial (GAMF) | 0 Degrees |
| Minimum Bore Diameter (DMIN) | 1.063″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Interchangeable boring heads Carrying 35° rhombic inserts with 7° clearance. | Country of Origin | China |
Shipping Info
Package Weight
0.22
