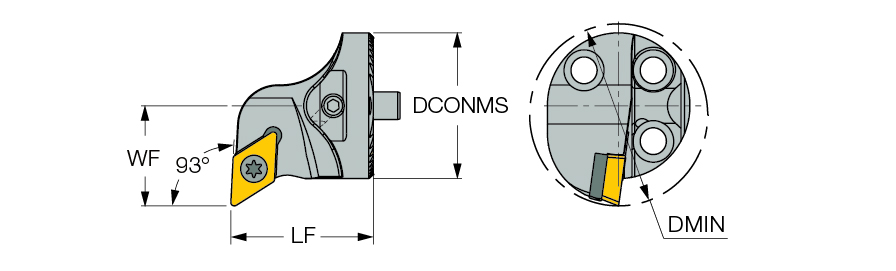

| Connection Diameter Machine Side (DCONMS) | 1.575″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 1.26″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Functional Width (WF) | 1.063″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Master Insert Identification (MIID) | DCMT 3-2-14 | Rake Angle Radial (GAMF) | 0 Degrees |
| Minimum Bore Diameter (DMIN) | 1.968″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features

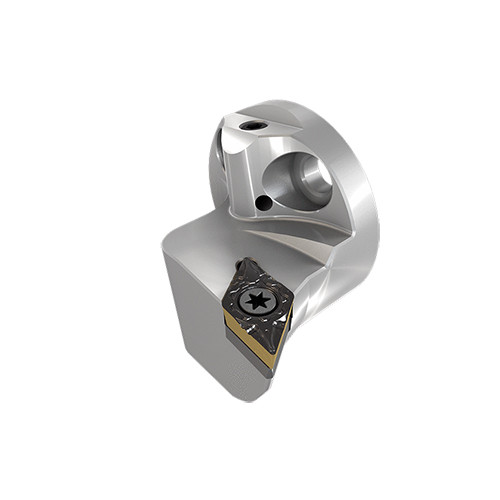

| Family Description | Interchangeable boring heads carrying 55° rhombic inserts with 7° clearance. | Country of Origin | China |
Shipping Info
Package Weight
0.551
