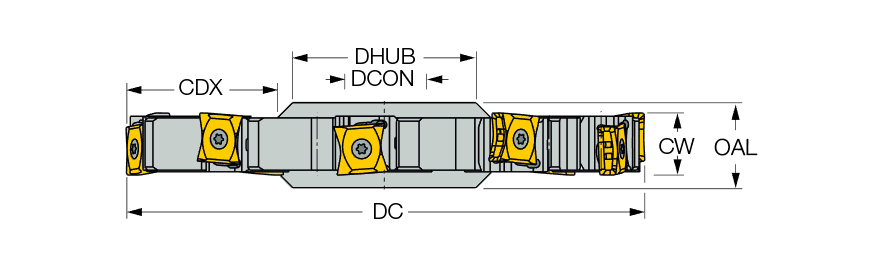

SDN D8.0-.75-1-16-CAPM15
| Cutting Diameter (DC) | 8″ | Flute Count (NOF) | 14 |
| Cutting Item Count (CICT) | 14 | Overall Length (OAL) | 1-1/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Master Insert Identification (MIID) | LNAT 150640-TN-PM |
| Cutting Depth Maximum (CDX) | 2.252″ | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Arbor Style | Arbor Hole |
| Hub Diameter (DHUB) | 3″ | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 1″ | Measurement Type | Inch |
| Cutting Width Minimum (CWN) | 3/4″ | Body Material | Steel |
| Usable Length (LU) | 35 mm |
Product Features
| Family Description | Full slot adjustable slotting cutters with cartridges carrying tangentially mounted LNAT 1506...-PM inserts. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. | Country of Origin | Israel |

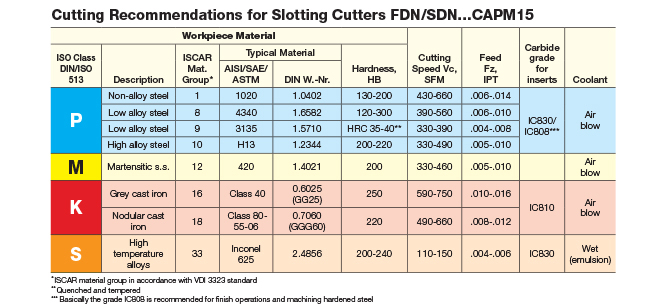

| Remarks | Each cutter can be changed into full slot, bottom or top milling configuration Use A type cartridges for inserts with .031-.063″ radii, B type cartridges for inserts with .098-.126″ radii and C type cartridges for inserts with .157″ radius Each cutter features two keyways To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position For cutting recommendations, click on "More Info" |
Shipping Info
Package Weight
8.048
