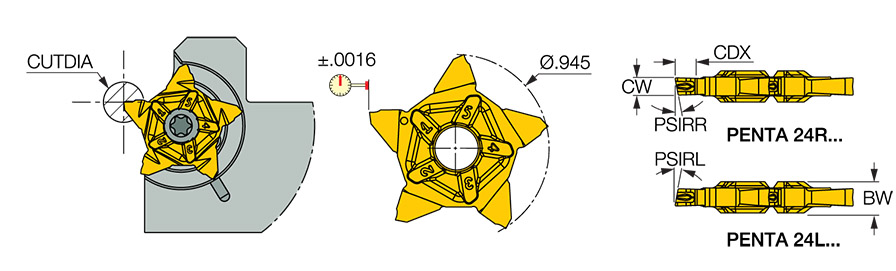

| Cutting Width (CW) | 0.079″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Cutting Depth Maximum (CDX) | 0.236″ | Chip Breaker Type | J |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Work Piece Parting Diameter Maximum (CUTDIA) | 0.472″ |
| Grade | IC808G | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Application | | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Insert Width (W1) | 0.157″ |
| Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
Product Features

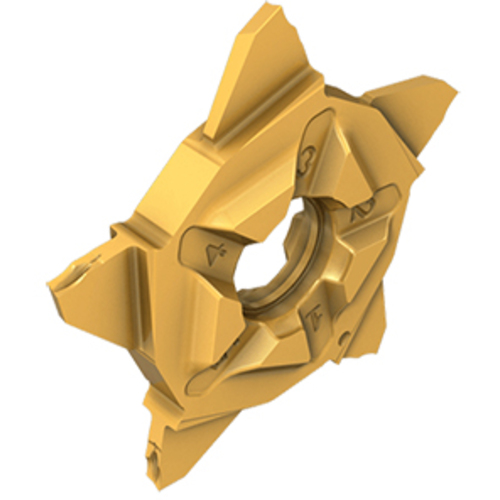

| Family Description | Parting off inserts with 5 angled cutting edges to minimize burr size. most economical system. superior insert stability clamping and high precision indexing for precise insert location and machining repeatability. | Country of Origin | Israel |
| Remarks | CUTDIA - parting to center For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.021
