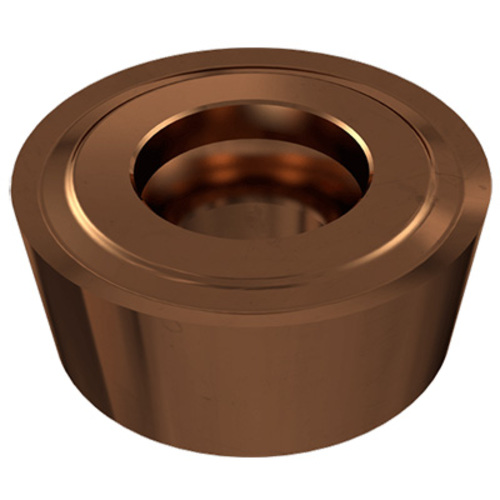

RCMT 10T3M0-F3H IC1024
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Ext. Round Face & Turn | Y Axis Variable Approach angle | | Tool Type | Turn Positive Inserts |
| Insert Style | RCMT | Min D.O.C. | 0.039″ |
| Insert Size | 10T | Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Thickness (S) | 0.156″ | Min. Turning Feed (ft(min)) | 0.00787 ″/rev |
| Inscribed Circle Diameter (IC) | 0.394″ | Max. Turning Feed (ft(max)) | 0.01969 ″/rev |
| Cutting Edge Material | Carbide | Clearance Angle Major (AN) | 7 Degrees |
| Coating | TiAl+TiAlSiN | Measurement Type | Inch |
| Grade | IC1024 | Body Material | Carbide |
Product Features
| Family Description | Round inserts with a 7° positive flank for medium and finish profiling on hardened steel | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
4.2
