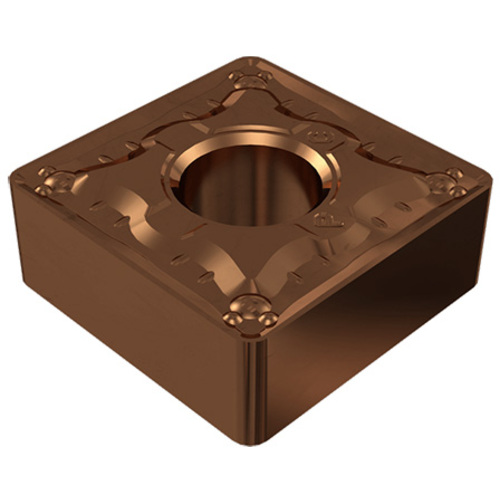

SNMG 432-F3H IC1024
| Applicable Material | | Hard Materials | | Coating | TiAl+TiAlSiN |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Grade | IC1024 |
| Insert Style | SNMG | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0315″ | Min D.O.C. | 0.02″ |
| Insert Size | 432 | Depth of Cut Maximum (APMX) | 0.098″ |
| Cutting Edge Length (L) | 1/2″ | Min. Turning Feed (ft(min)) | 0.00591 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.01969 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Double-sided 80° square inserts for semi-finish and finish turning of hardened steel | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
10.6
