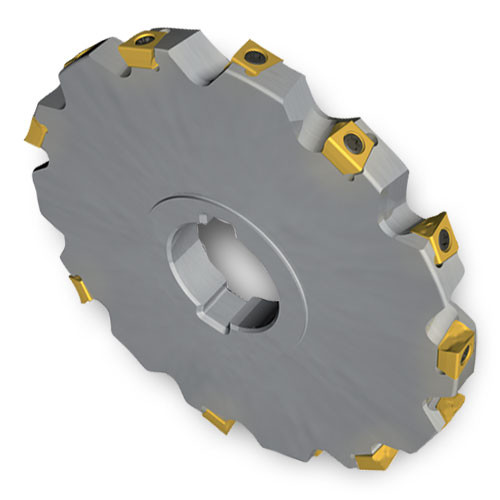

3SJ6H-10075AK-01
| Cutting Diameter (DC) | 10″ | Usable Length (LU) | 35 mm |
| Cutting Item Count (CICT) | 18 | Flute Count (NOF) | 5 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 9 Teeth | Master Insert Identification (MIID) | DPM324 |
| Cutting Depth Maximum (CDX) | 3-1/4″ | Application | | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 2″ | Arbor Style | Arbor Hole |
| Hub Diameter (DHUB) | 3-1/2″ | Measurement Type | Inch |
| Hub Thickness (THUB) | 3/4″ | Body Material | Steel |
| Cutting Width (CW) | 3/4″ |
Product Features
| Family Description | .625-1.000″ Cutting widths Insert corners: .031″, .062″, .094″, .125″ R Inserts with 4 indexes (2RH/2LH) | Country of Origin | Usa |
Shipping Info
Package Weight
0.026
