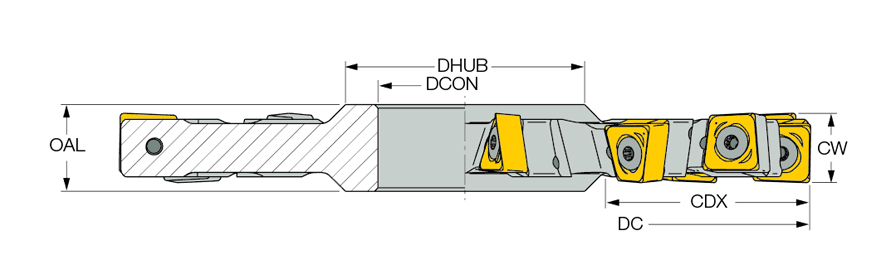

SDN D4.0-0.56-10-XN13
| Cutting Diameter (DC) | 4″ | Flute Count (NOF) | 10 |
| Cutting Item Count (CICT) | 10 | Overall Length (OAL) | 5/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Master Insert Identification (MIID) | XNMU 130608PNTN |
| Depth of Cut Maximum (APMX) | 0.56″ | Application | | Bottom Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 1.004″ | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.765″ | Body Material | Steel |
| Cutting Width (CW) | 0.56″ | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Full slot disk type slotting cutters carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.475
