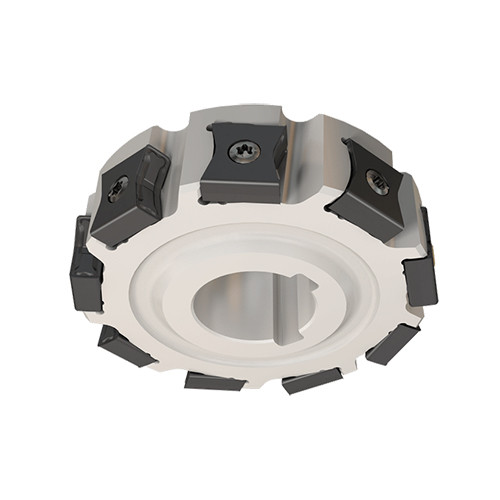

SSB D3.0-.875-08-LN15-L*

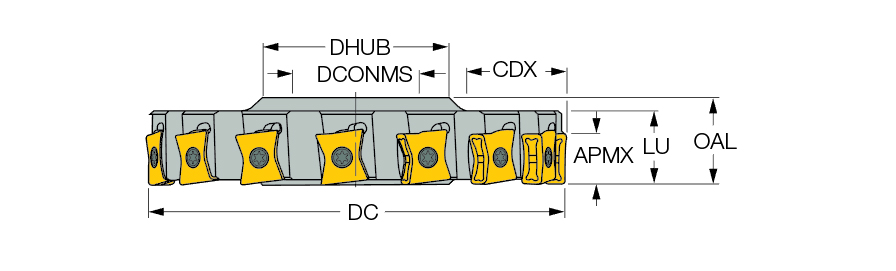

| Cutting Diameter (DC) | 3″ | Overall Length (OAL) | 1″ |
| Cutting Item Count (CICT) | 9 | Master Insert Identification (MIID) | LNKX 1506PN-N PL |
| Peripheral Effective Cutting Edge Count (ZEFP) | 9 | Application | | Bottom Shouldering | Shouldering | |
| Depth of Cut Maximum (APMX) | 0.551″ | Tool Type | Half-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 3/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1-1/2″ | Body Material | Steel |
| Usable Length (LU) | 0.88″ | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Single-side cutting, disk type slotting cutters carrying tangentially clamped LNKX 1506... inserts (TANGMILL). | Country of Origin | Israel |
Shipping Info
Package Weight
1.62
