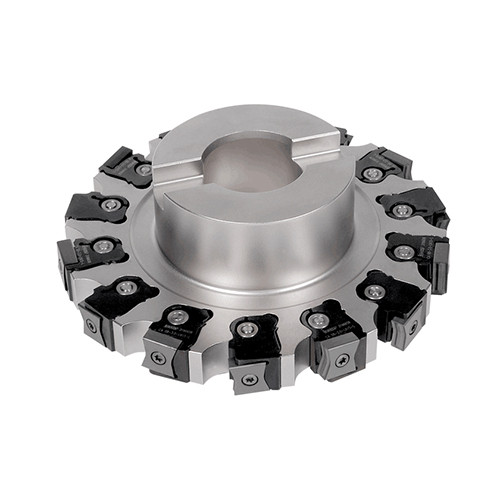

FDN D5.0-.75-1-10R-CAPM15

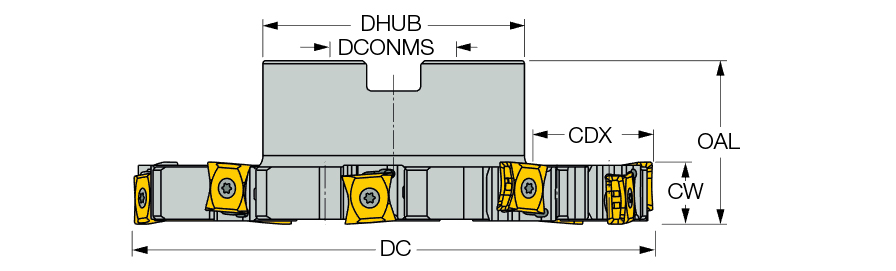

| Cutting Diameter (DC) | 5″ | Flute Count (NOF) | 8 |
| Cutting Item Count (CICT) | 8 | Overall Length (OAL) | 1-1/2″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Master Insert Identification (MIID) | LNAT 150608-N-MM-PM |
| Cutting Depth Maximum (CDX) | 1.22″ | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Arbor Style | B |
| Hub Diameter (DHUB) | 2.56″ | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 1″ | Measurement Type | Inch |
| Cutting Width Minimum (CWN) | 3/4″ | Body Material | Steel |
Product Features
| Family Description | Full slot, adjustable slotting cutters with cartridges using LNAT 1506...-PM inserts. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. | Country of Origin | Israel |

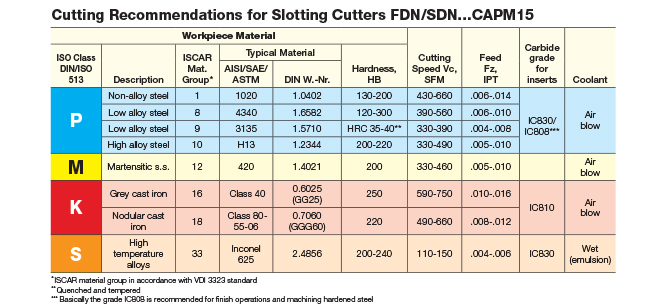

| Remarks | Use A type cartridges for inserts with .031-.063 radii, B type cartridges for inserts with .098-.126 radii and C type cartridges for inserts with .157 radius For cutting recommendations, click on More Info |
Shipping Info
Package Weight
3.898
