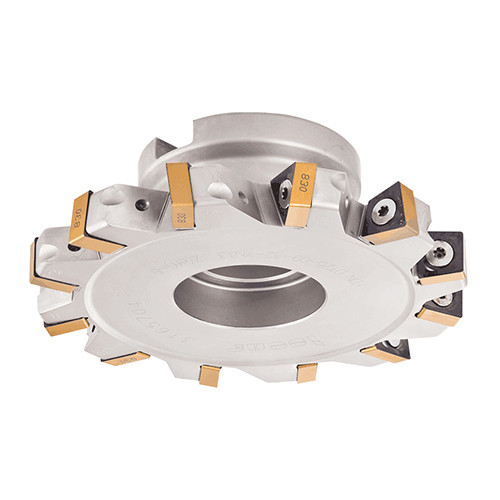

FDN D5.0-0.62-10-XN13

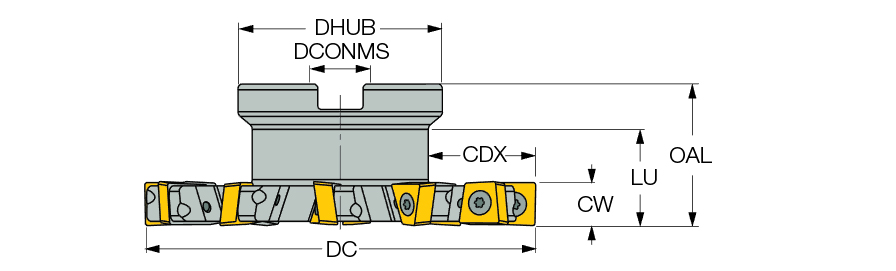

| Cutting Diameter (DC) | 5″ | Flute Count (NOF) | 12 |
| Cutting Item Count (CICT) | 12 | Overall Length (OAL) | 2″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Master Insert Identification (MIID) | XNMU 130608PNTN |
| Depth of Cut Maximum (APMX) | 0.62″ | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 1.378″ | Arbor Style | B |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 2.56″ | Measurement Type | Inch |
| Cutting Width (CW) | 0.62″ | Body Material | Steel |
| Usable Length (LU) | 1.47″ |
Product Features
| Family Description | Full slot flange type slotting cutters carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
3.197
