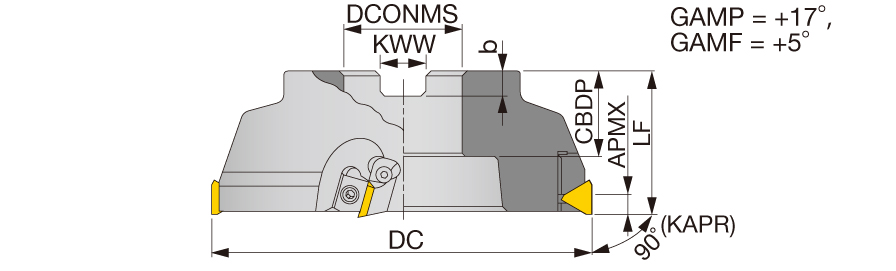

TSE3050R-E
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | TEEN32ZTR |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 8 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm | Tool Type | 90 Facemills |
Product Features
| Family Description | Shoulder square mills with wedge clamped high-posi triangle inserts | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. For APMX, please refer to insert size table. |
Shipping Info
Package Weight
0.796
