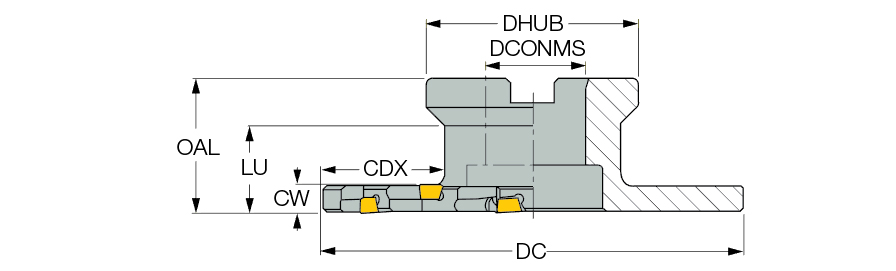

FDN D6.0-0.375-12-LN12
| Cutting Diameter (DC) | 6″ | Flute Count (NOF) | 16 |
| Cutting Item Count (CICT) | 16 | Overall Length (OAL) | 2″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Master Insert Identification (MIID) | LNET 125504-TN |
| Cutting Depth Maximum (CDX) | 1.63″ | Application | | Bottom Shouldering | Side Slotting | Slotting | T Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Arbor Style | B |
| Hub Diameter (DHUB) | 3.16″ | Tool Type | Double-sided slotting cutters |

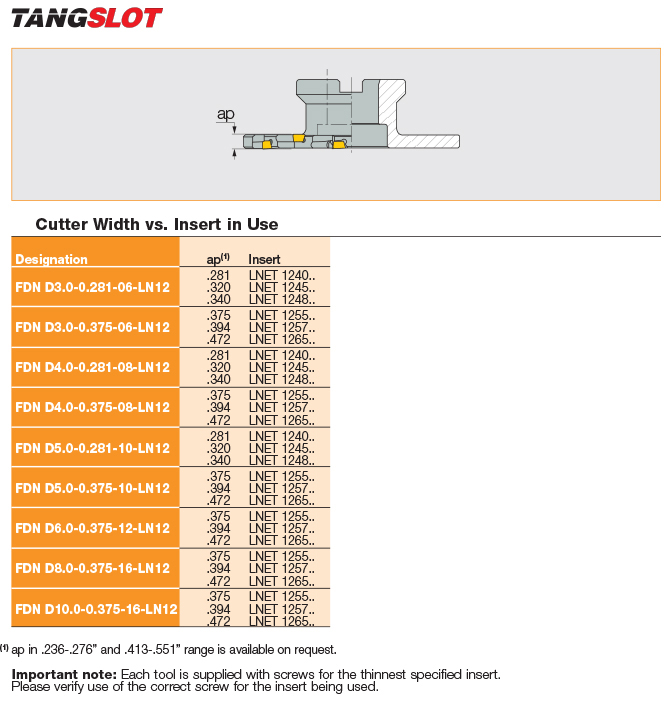

| Cutting Width Maximum (CWX) | 0.394″ | Measurement Type | Inch |
| Cutting Width Minimum (CWN) | 3/8″ | Body Material | Steel |
| Usable Length (LU) | 1.44″ |
Product Features

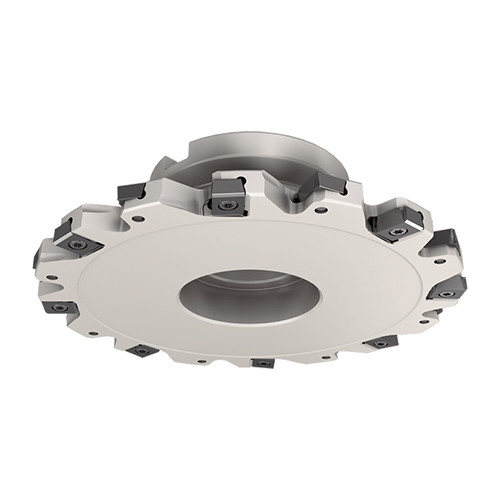

| Family Description | Full slot cutters carrying LNET 12 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT). | Country of Origin | Israel |
| Remarks | Each tool is supplied with screws for the thinnest specified insert. Verify use of correct screw for the insert being used. Slot width depends on the selected insert width. |
Shipping Info
Package Weight
4.034
