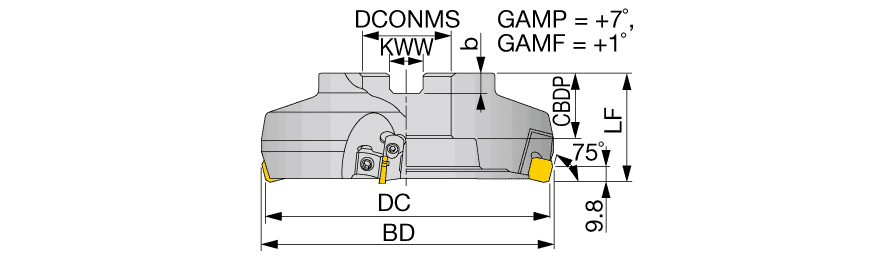

TGP4106RBAE
| Cutting Diameter (DC/DCX) | 160 mm | Master Insert Identification (MIID) | SPKN42STR |
| Cutting Diameter (DC) | 160 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 167 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 12 | Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 7 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Tool Type | 75 Facemills |
Product Features
| Family Description | 75 deg face mills with wedge clamped square inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
13.614
