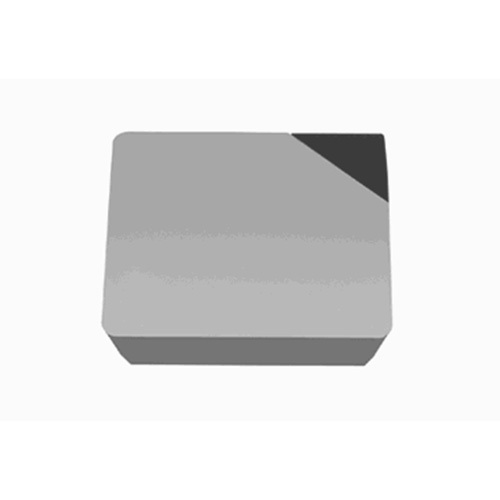

SECN42ZFR-DIA DX160
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | DX160 |
| Application | | Face Milling | | Cutting Edge Material | PCD |

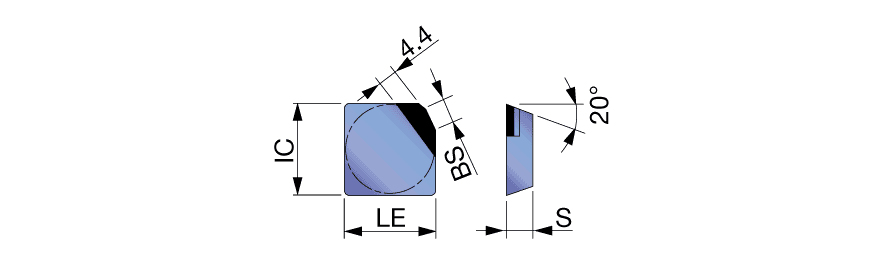

| Depth of Cut Maximum (APMX) | 3 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 12.7 mm | Number of Cutting Edges | 1 |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Edge Effective Length (LE) | 12.7 mm |
| Insert Thickness (S) | 3.18 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 2.5 mm | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Positive 20deg relief ang., C class, square PCD insert for THE4000IA AND QHE4000 milling cutter | Country of Origin | JAPAN |
| Remarks | T DIA is trade name for Tungaloy's PCD grade. Available in one corner type. |
Shipping Info
Package Weight
0.000
