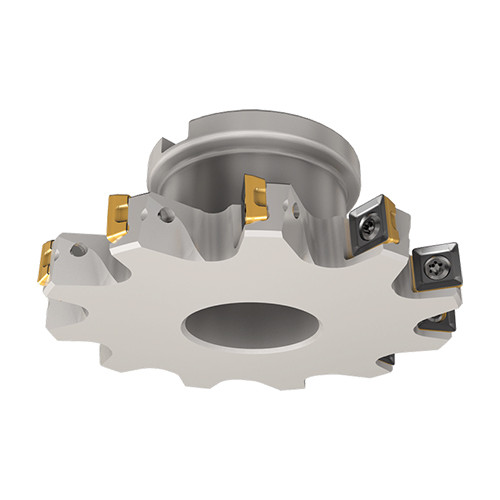

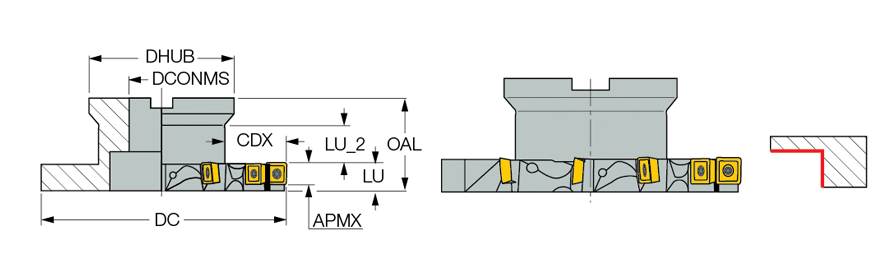

FST D8.0-0.50-16-R10*
| Cutting Diameter (DC) | 8″ | Overall Length (OAL) | 2-1/2″ |
| Cutting Item Count (CICT) | 20 | Master Insert Identification (MIID) | XPMT 100408-HQ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 20 | Application | | Bottom Shouldering | |
| Depth of Cut Maximum (APMX) | 0.37″ | Arbor Style | B |
| Cutting Depth Maximum (CDX) | 2-1/4″ | Tool Type | Half-sided slotting cutters |
| Hub Diameter (DHUB) | 4″ | Measurement Type | Inch |
| Usable Length (LU) | 1/2″ | Body Material | Steel |
Product Features
| Family Description | Top-side cutting, flanged type slotting cutters. | Country of Origin | Israel |
| Remarks | For adaptation, click on "More Info". |
Shipping Info
Package Weight
8.818
