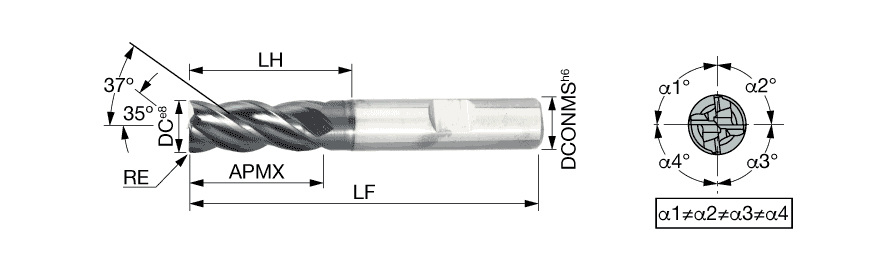

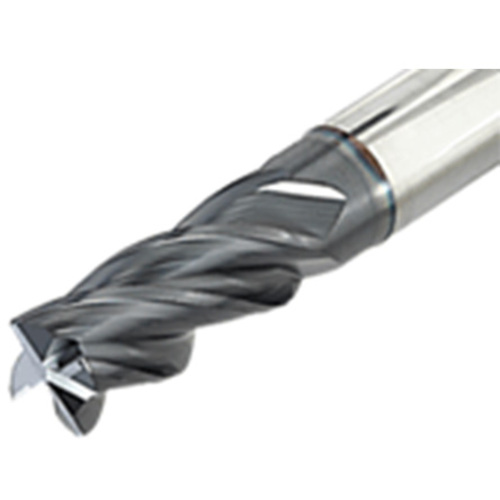

TEC120H4L-24/38W12CF-R06 AH725
| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0.6 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 24 mm | Grade | AH725 |
| Overall Length (OAL) | 83 mm | Head Length (LH) | 38 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 38 mm |
| Coating | TiAlN | Tool Type | Solid carbide center cutting endmills 90 |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Shank Type | Weldon | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| End Shape | Corner Radius | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Shoulder Milling | |
Product Features
| Family Description | 4 flute chatter dampening endmill, variable helix and variable pitch, long neck type | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
