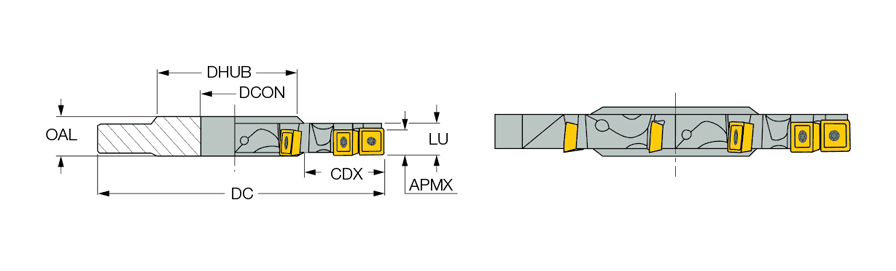

SSB D4.0-0.50-10-L10
| Cutting Diameter (DC) | 4″ | Flute Count (NOF) | 9 |
| Cutting Item Count (CICT) | 9 | Overall Length (OAL) | 5/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 9 | Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
| Depth of Cut Maximum (APMX) | 0.37″ | Application | | Bottom Shouldering | |
| Cutting Depth Maximum (CDX) | 1-1/8″ | Tool Type | Half-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1-3/4″ | Body Material | Steel |
| Usable Length (LU) | 1/2″ | Connection Code Machine Side (CCMS) | Disk type |
Product Features

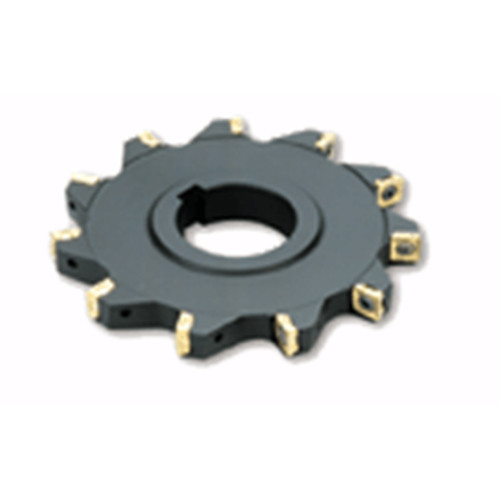

| Family Description | Single-side cutting, disk type slotting cutters carrying square inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.594
