KUSTR026NXX.XXX(1.181-

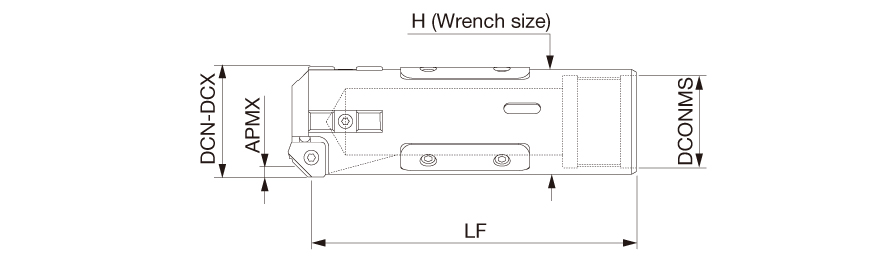

| Connection Diameter Machine Side (DCONMS) | 0.945″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 1.259″ | Application | | BTA system | |
| Cutting Diameter Minimum (DCN) | 1.182″ | Depth of Cut Maximum (APMX) | 0.11″ |
| Body Material | Steel |
Product Features

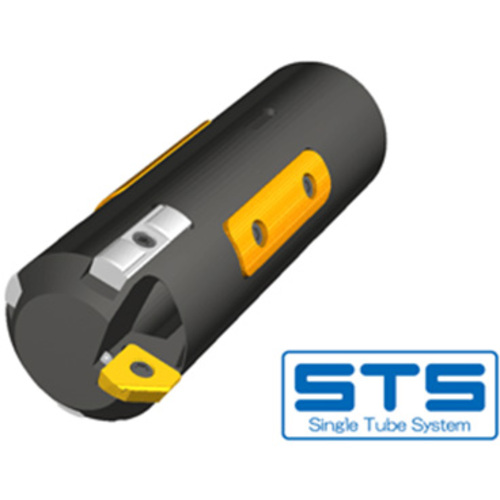

| Family Description | Single Tube Counterboring Drills with Inner Single Start Thread connection and Cartridges, dia=0.984 - 1.574 inch. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | JAPAN |
| Remarks | These products are made to order on request. |
