FDN D4.0-0.50-08-R10

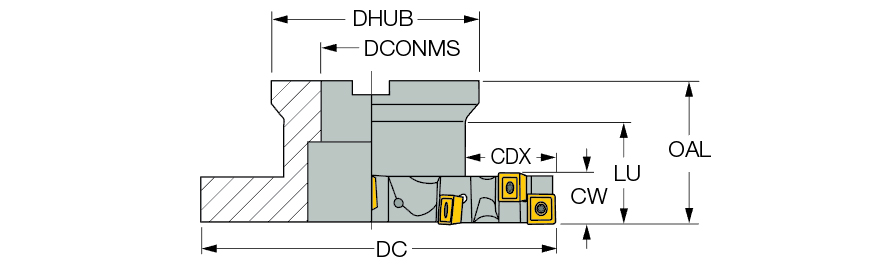

| Cutting Diameter (DC) | 4″ | Flute Count (NOF) | 12 |
| Cutting Item Count (CICT) | 12 | Overall Length (OAL) | 1-3/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Master Insert Identification (MIID) | XPMT 100408-HQ |
| Depth of Cut Maximum (APMX) | 1/2″ | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |

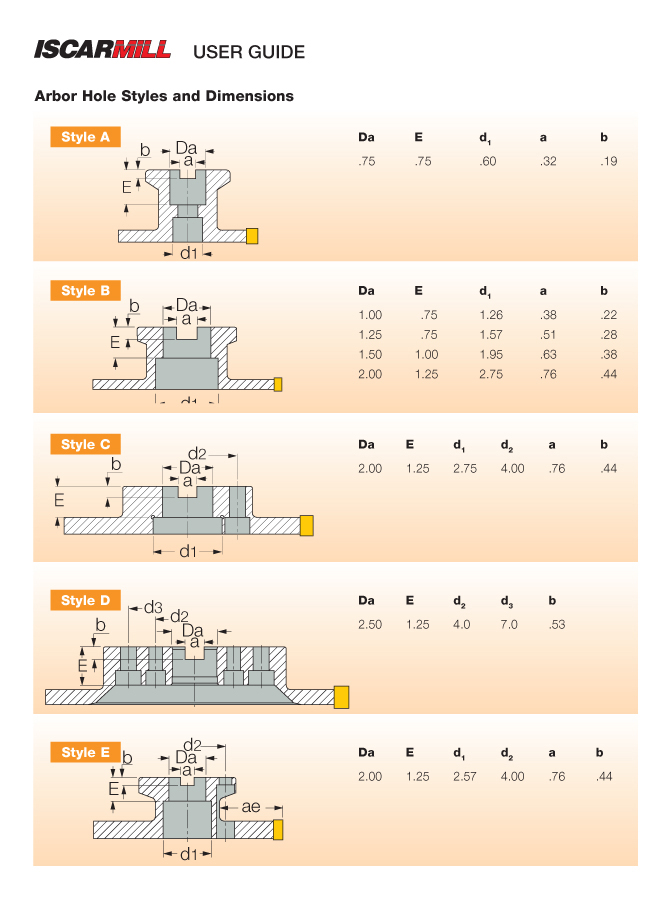

| Cutting Depth Maximum (CDX) | 1.07″ | Arbor Style | B |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 2.16″ | Measurement Type | Inch |
| Cutting Width (CW) | 1/2″ | Body Material | Steel |
| Usable Length (LU) | 1.35″ |
Product Features
| Family Description | HELIQUAD, Full slot, flange-type slotting cutters. | Country of Origin | Israel |
Shipping Info
Package Length
8.00000
Package Width
8.50000
Package Height
2.50000
Package Weight
2.012
