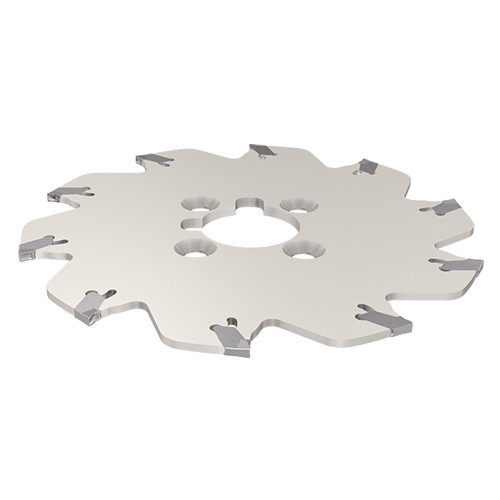

SGSF 200-6-1.500K

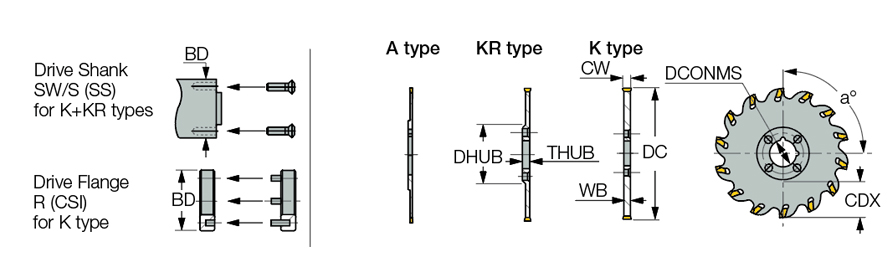

| Cutting Diameter (DC) | 7.87″ | Cutting Width Minimum (CWN) | 0.22″ |
| Cutting Item Count (CICT) | 14 | Master Insert Identification (MIID) | GSFN 6C |
| Peripheral Effective Cutting Edge Count (ZEFP) | 14 | Application | | Side Slotting | Slitting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 2.34″ | Rotational Speed Maximum (RPMX) | 400 Rev/min |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Tool Type | Slitting cutters |
| Hub Diameter (DHUB) | 3.15″ | Measurement Type | Inch |
| Hub Thickness (THUB) | 0.2″ | Body Material | Steel |
| Cutting Width Maximum (CWX) | 0.26″ | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Slitting cutters carrying SELF-GRIP inserts | Country of Origin | Israel |
| Remarks | Only the K type cutters feature 4 driving holes around the central hole; can be driven by the R drive shanks Refer to SW/S drive shanks and R driving flange set. |
Shipping Info
Package Weight
2.985
