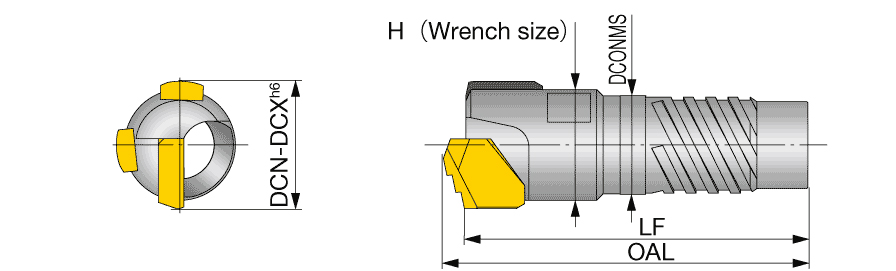

UTE-0098 X.XXX
| Application | | BTA system | | Cutting Diameter Minimum (DCN) | 0.658″ |
| Measurement Type | Inch | Connection Diameter Machine Side (DCONMS) | 0.535″ |
| Overall Length (OAL) | 1.732″ | Body Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.6968″ |
Product Features

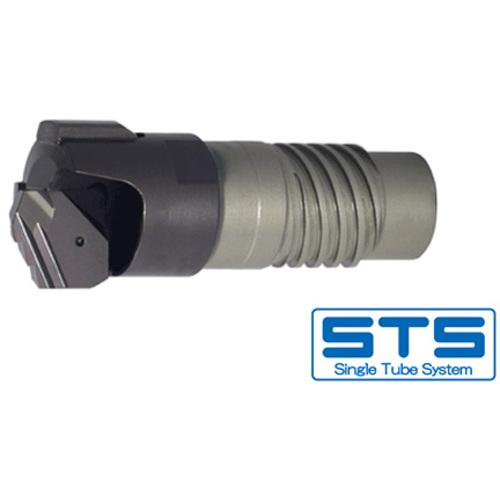

| Family Description | Single Tube Drills with Outer 2 and 4 Start Thread connection and a Brazed Tip, dia= 0.496 - 0.787 inch. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | JAPAN |
| Remarks | These products are made to order on request. |
