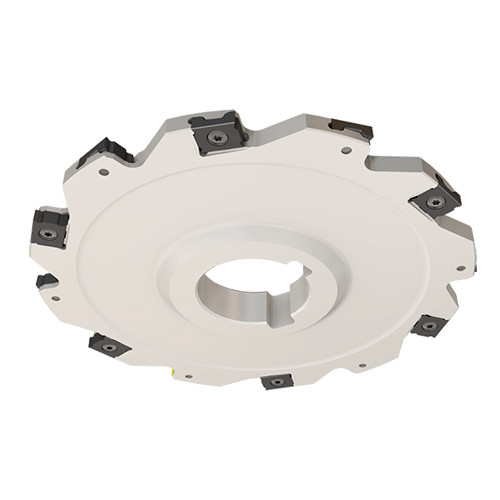

SDN D5.00-.187-10-LN08

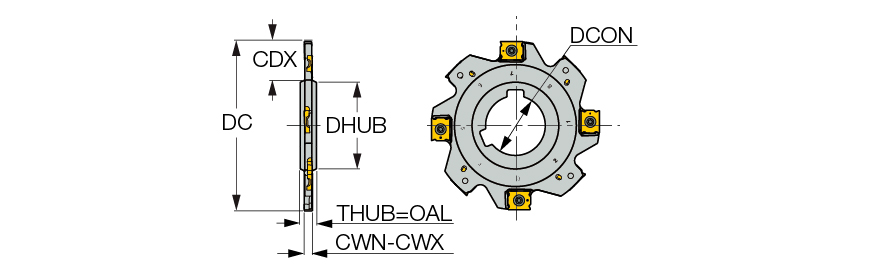

| Cutting Diameter (DC) | 5″ | Flute Count (NOF) | 16 |
| Cutting Item Count (CICT) | 16 | Overall Length (OAL) | 3/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Master Insert Identification (MIID) | LNET 083004-TN-N |
| Cutting Depth Maximum (CDX) | 1.47″ | Application | | Side Slotting | Slitting | Slotting | |
| Hub Diameter (DHUB) | 1-3/4″ | Tool Type | Double-sided slotting cutters |
| Hub Thickness (THUB) | 3/8″ | Measurement Type | Inch |
| Cutting Width Maximum (CWX) | 0.207″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.187″ | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Disk type grooving and slitting cutters carrying tangentially clamped inserts with 4 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
1.270
