KUDTS20E-X.XXX

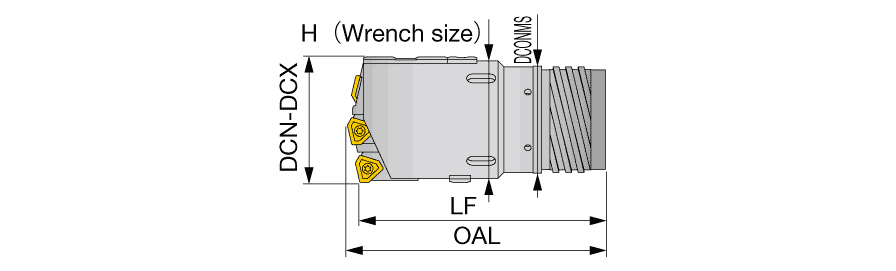

| Application | | BTA system | | Cutting Diameter Minimum (DCN) | 4.41″ |
| Connection Diameter Machine Side (DCONMS) | 3.976″ | Cutting Diameter Maximum (DCX) | 4.881″ |
| Functional Length (LF) | 8.071″ | Measurement Type | Inch |
| Overall Length (OAL) | 8.701″ | Body Material | Steel |
Product Features

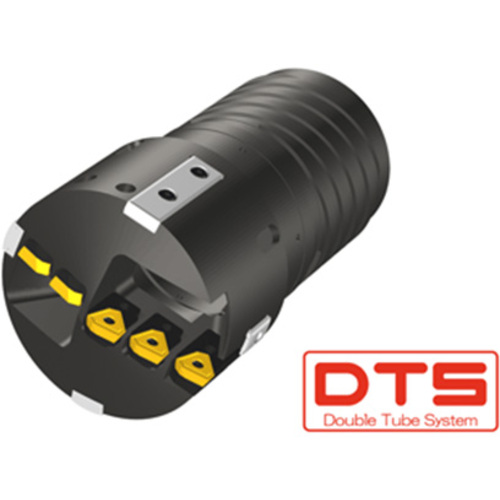

| Family Description | Double Tube Drills with Outer 4 Start Thread connection and Cartridges, dia= 1.496 - 7.243 inch. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | JAPAN |
| Remarks | These products are made to order on request. For inserts and spare parts, click on "More Info". |
