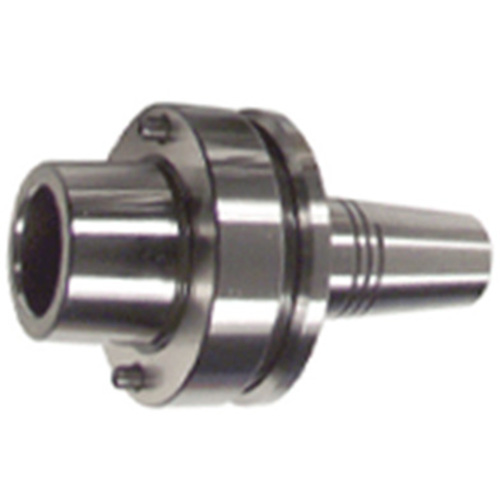

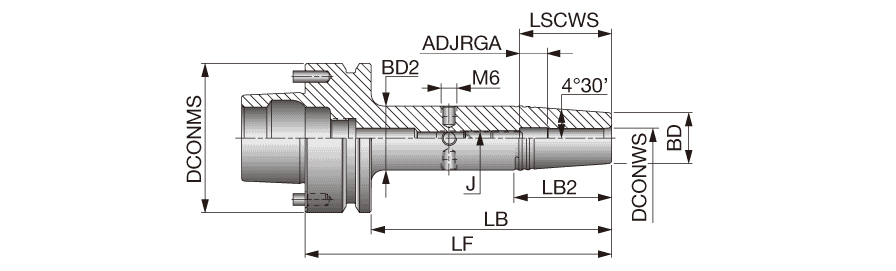

HSKFM63SRKIN8X80
| Connection Diameter Machine Side (DCONMS) | 63 mm | Overall Length (OAL) | 80 mm |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Shank Type | Round |
| Shank Size (SS) | 63. | Application | | Face contact interface | |
| Body Length (LB) | 54 mm | Thread Designation Inside (THID) | M6 |
| Body Length_2 (LB_2) | 38 mm | Measurement Type | Metric |
| Body Diameter (BD) | 21 mm | Tool Type | HSK |
| Body Diameter_2 (BD_2) | 27 mm | Body Material | Steel |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide and HSS with HSK-FM shank | Country of Origin | ISRAEL |
| Remarks | The driving pins can be removed, turning the toolholder into a standard HSK F63 type. Use only inductive heating device for SRKIN holders. |
