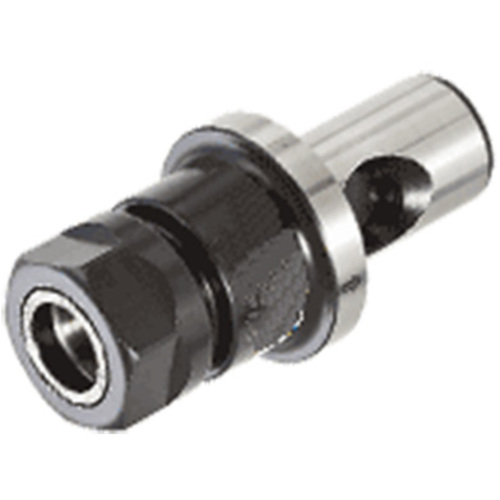

ER11 CF4-S

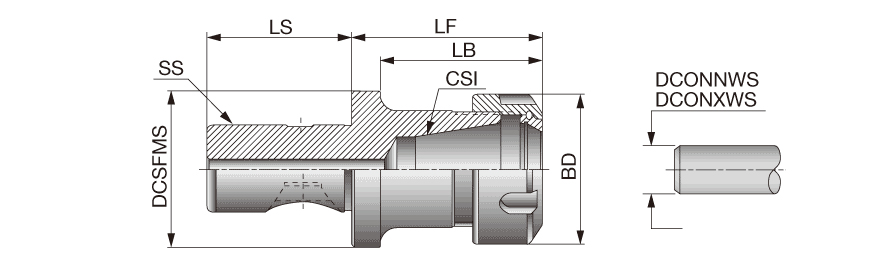

| Shank Size (SS) | CF4 | Application | | Straight shape | |
| Connection Size (CSI) | ER11 | Tool Type | Interchangeable Milling Connectors |
| Body Diameter (BD) | 0.748″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Diameter_3 (BD_3) | 1.732″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.276″ |
| Body Length (LB) | 1.85″ | Measurement Type | Inch |
| Shank Length (LS) | 1.654″ | Body Material | Steel |
| Functional Length (LF) | 2.165″ |
Product Features
| Family Description | TungFit collet chuck adapter | Country of Origin | ISRAEL |
| Remarks | Tightening torque: 58.8 Nm |
