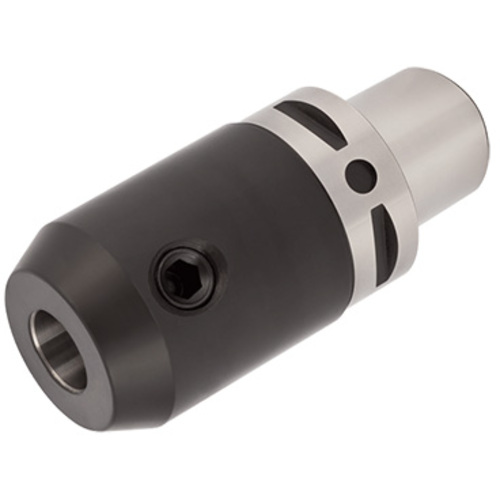

C4EM10X70E

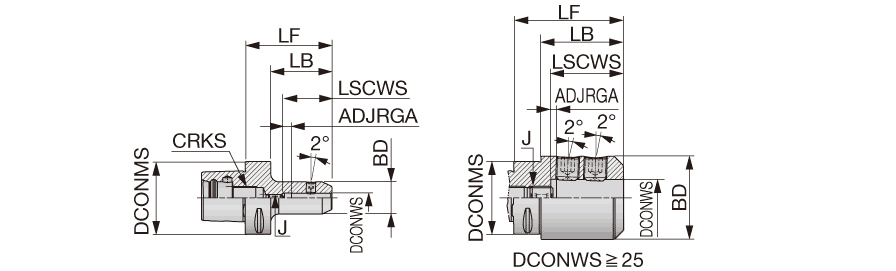

| Shank Size (SS) | 40. | Connection Retention Knob Thread Size (CRKS) | M14 |
| Body Length (LB) | 50 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 35 mm | Overall Length (OAL) | 70 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Application | | Face contact interface | | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm |
Product Features
| Family Description | TungCap drill holders (DIN1835 Form E - whistle notch) | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Package Weight
0.000
