DIN6987150CF4-SB

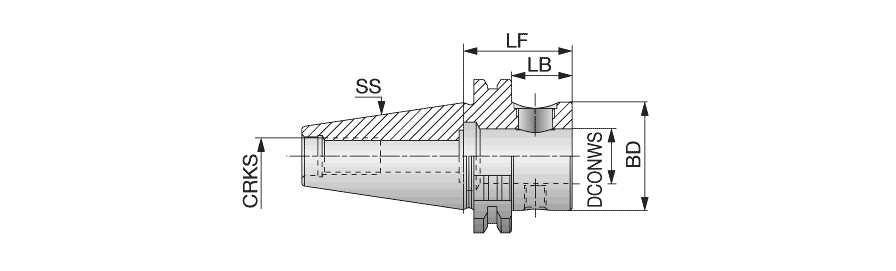

| Shank Size (SS) | 50. | Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Length (LB) | 25 mm | Tool Type | DIN 69871 |
| Body Diameter (BD) | 44.5 mm | Overall Length (OAL) | 44.1 mm |
| Application | | Tapered shape interface | | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Body Material | Steel |
Product Features

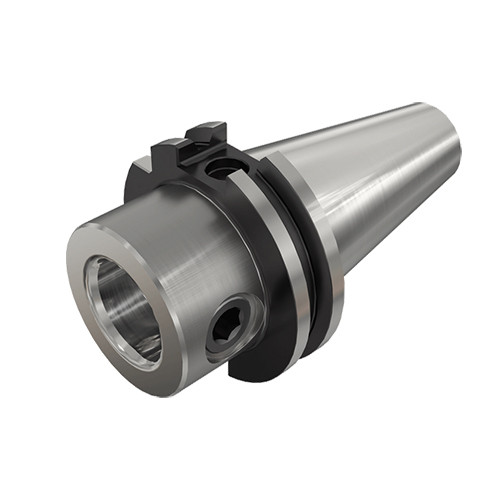

| Family Description | TungFit quick change style modular tooling system with DIN69871 shank | Country of Origin | ISRAEL |
| Remarks | Tightening torque: 58.8 Nm Add B for coolant through the flange. |
Shipping Info
Package Weight
0.000
